Description

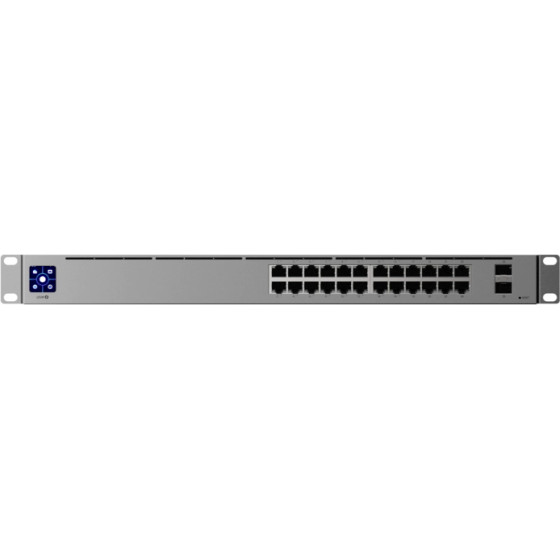

The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3? touch LCM to provide status information. With a depth of 7.9?, the compact fanless design can be easily installed in a SOHO rack cabinet.
Features
(24) Gigabit Ethernet Ports including (16) 802.3at PoE+
(2) 1G SFP Ports
1.3? touch LCM
Managed with UniFi application
120W Power supply
Managed with UniFi Network Application Version: 5.11.27 or higher Specifications
Mechanical
Dimensions
442.4 x 200 x 43.7 mm
(17.42 x 7.87 x 1.72?)
Weight
With Brackets
Without Brackets
3.09 kg (6.81 lb)
3.00 kg (6.61 lb)
Interfaces
NetworkingManagement
(24) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet PortsEthernet In-Band
Total Non-Blocking Throughput
26 Gbps
Switching Capacity
52 Gbps
Forwarding Rate
38.69 Mpps
Power Method
100-240VAC/50-60 Hz, Universal Input
Power Supply
AC/DC, Internal, 120W
Supported Voltage Range
100 to 240VAC
Max. Power Consumption (Excluding PoE Output)
25W
LEDs
RJ45 Data Ports
SFP Data Ports
PoE; Speed/Link/Activity
Link/Activity
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration
ETSI300-019-1.4 Standard
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
PoE
Total Available PoE
95W
PoE Interfaces Ports 1-16
POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE
802.3at
32W
Voltage Range 802.3af Mode
44-57V
Voltage Range 802.3at Mode
50-57V
