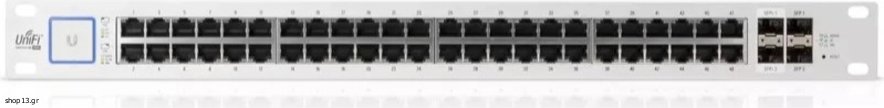

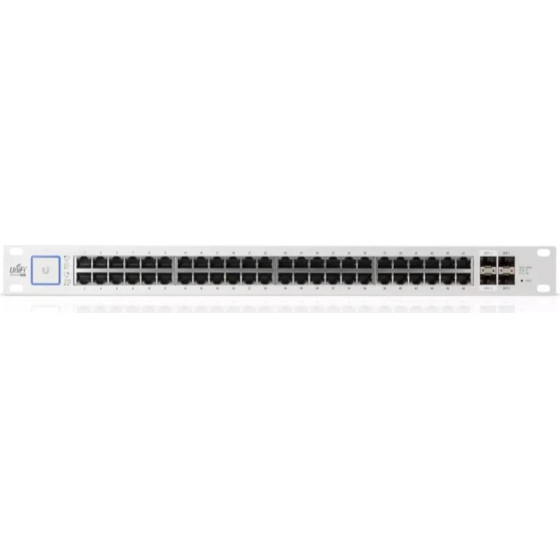

Ubiquiti - (US-48-500W)
[Κωδικός : 465248]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Description
Powerful Enterprise Switch Models: The UniFi(R) Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
Advanced Port Management: Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate).
Optical Fiber Connectivity: Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ Support: The UniFi(R) Switch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Seamless Integration: The UniFi(R) Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations -- all controlled from a single interface.
Specifications
Dimensions
485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75?)
Weight
6.1 kg (14.3 lb)
Networking Interfaces
(48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface
(1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Total Non-Blocking Throughoutput
70 Gbps
Switching Capacity
140 Gbps
Forwarding Rate
104.16 Mpps
MAC Address Table
16384
Maximum Aggregations
6
Monitoring Sessions
1
Maximum VLANs
255
Power Method
100-240VAC/50-60 Hz, Universal Input
Power Supply
AC/DC, Internal, 500W DC
Max. Power Consumption
Including PoE Output: 500W Excluding PoE Output: 64W
LEDs Per Port
RJ45 Data Ports: PoE, Speed/Link/Activity SFP Data Ports: Speed/Link/Activity
Sound Level
Fan Level 0: 10.7 dBr Fan Level 1: 16.2 dBr Fan Level 2: 19.3 dBr Fan Level 3: 23.6 dBr
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Shock & Vibration
ETSI300-019-1.4 Standard
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
Powerful Enterprise Switch Models: The UniFi(R) Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
Advanced Port Management: Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate).
Optical Fiber Connectivity: Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ Support: The UniFi(R) Switch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Seamless Integration: The UniFi(R) Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations -- all controlled from a single interface.
Specifications
Dimensions
485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75?)
Weight
6.1 kg (14.3 lb)
Networking Interfaces
(48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface
(1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Total Non-Blocking Throughoutput
70 Gbps
Switching Capacity
140 Gbps
Forwarding Rate
104.16 Mpps
MAC Address Table
16384
Maximum Aggregations
6
Monitoring Sessions
1
Maximum VLANs
255
Power Method
100-240VAC/50-60 Hz, Universal Input
Power Supply
AC/DC, Internal, 500W DC
Max. Power Consumption
Including PoE Output: 500W Excluding PoE Output: 64W
LEDs Per Port
RJ45 Data Ports: PoE, Speed/Link/Activity SFP Data Ports: Speed/Link/Activity
Sound Level
Fan Level 0: 10.7 dBr Fan Level 1: 16.2 dBr Fan Level 2: 19.3 dBr Fan Level 3: 23.6 dBr
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Shock & Vibration
ETSI300-019-1.4 Standard
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
