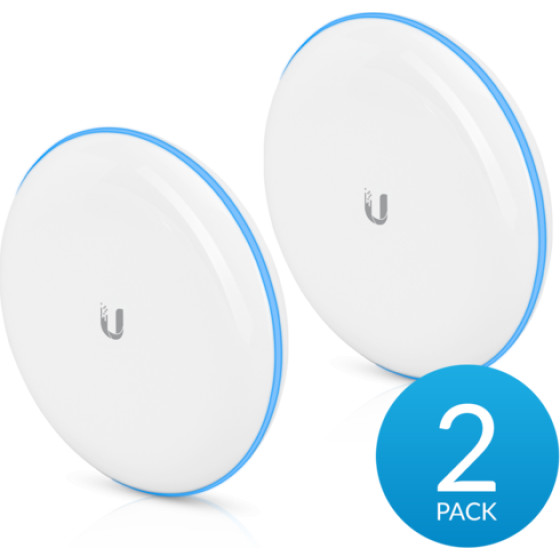

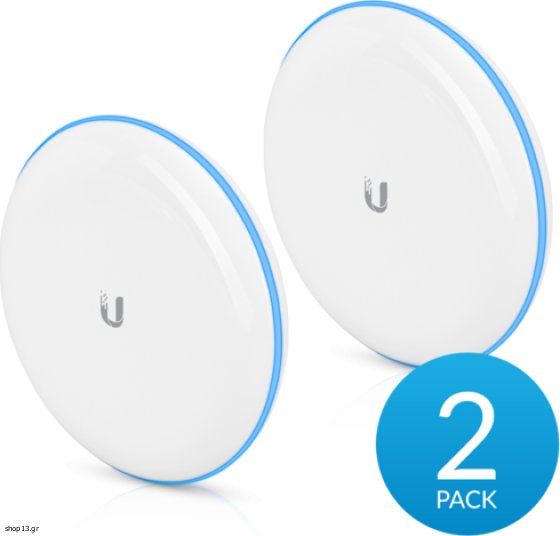

Building-to-Building Bridge
UniFi(R) Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi application makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.
Package Contents:
UniFi Building-to-Building Bridge (x2)
Ball joint mount (x2)
Lock ring (x2)
Metal strap (x2)
Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
Power cord (x2)
Managed with UniFi Network Application Version: 5.12.0 or higher
Specifications
Dimensions
140 x 140 x 90 mm (5.51 x 5.51 x 3.54?)
Weight
376 g (13.3 oz)
Antenna Gain
2.4 GHz (BLE)
5 GHz
60 GHz
2 dBi
10 dBi
17.2 dBi
GPS
Yes
Max. TX Power
25 dBm (5 GHz)
Interfaces
Networking
Management
(1) 10/100/1000 Ethernet Port
Bluetooth
Enclosure
UV-Resistant Polycarbonate
Power Method 802.3af Supported
Passive Power over Ethernet (48V)
Power Supply
UniFi PoE Switch
48V, 0.32A Gigabit PoE Adapter (Included)
Max Power Consumption
11W
Wind Loading
56 N @ 200 km/h (12.6 lbf @ 125 mph)
Wind Survivability
200 km/h (125 mph)
Mounting
Pole-Mount (Kit Included)
Wall-Mount (Not Included)
ESD/EMP Protection
± 24kV Contact/Air
Operating Temperature
-40 to 70° C (-40 to 158° F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
Operating Frequency (MHz)
Worldwide
5150 - 5875
57,000 - 66,000
US/CA
U-NII-1: 5150 - 5250
U-NII-3: 5725 - 5850
57,000 - 66,000
Bluetooth (MHz)
Worldwide
2400 - 2483.5
