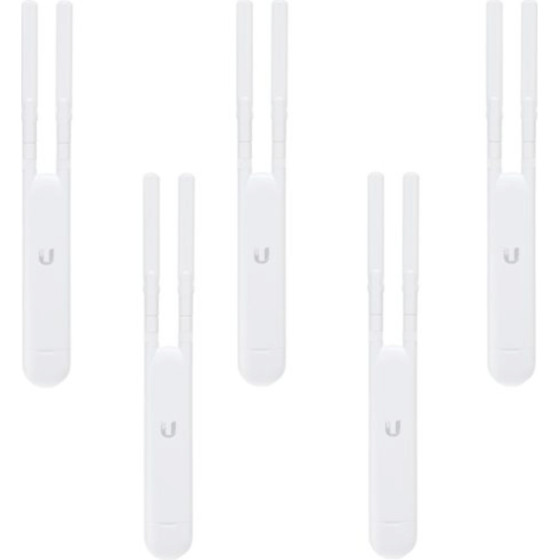

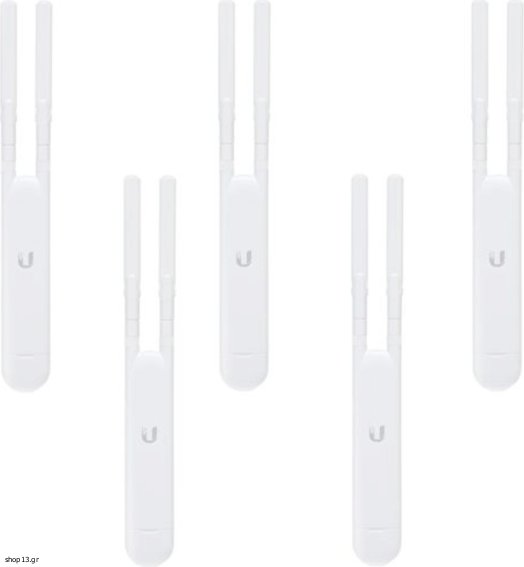

Ubiquiti - (UAP-AC-M-5)
[Κωδικός : 465214]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
UBNT UniFi AP, AC Mesh, 5-Pack
UAP-AC-M is wireless accesspoint 2x2 MIMO with modulation speed up to 300 Mbps for 2.4GHz band (802.11b/g/n) and up to 866 Mbps for 5GHz band (802.11a/n/ac). The UniFi AC Mesh AP is designed to discreetly integrate into any environment and can be used indoors or outdoors. Device is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af alternative A compatible switch, EdgePoint(TM) EP-R6, UniFi PoE Switch, or the included Gigabit PoEadapter. Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.
The UniFi AC Mesh AP can be mounted on a wall, pole, or fast-mount of a Ubiquiti high.gain antenna. (All accessories are included.)
Unit central management UniFi APs doesn’t have own web GUI and you manage them via UniFi Controller, which you can download on UBNT websites here: http://www.ubnt.com. Or you can manage UAP devices using UniFi Cloud Key which has UniFi Controller preinstalled. Additional benefit is fact that UniFi Controller software is free of costs and includes advanced functions without limitations.
Specifications
Dimensions
353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35?)
Weight
152 g (5.36 oz) with Antennas
Networking Interface
2x2 WiFi dual band / Ethernet Gigabit
Ports
(1) 10/100/1000 Ethernet
Buttons
Reset
Antennas
2 Dualband antennas
Wi-Fi Standards
802.11a/b/g/n/ac
Power Method
24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC)
Power Supply
24V, 0.5A Gigabit PoE Adapter*
Maximum Power Consumption
8.5W
Max TX Power
20 dBm
BSSID
Up to Four per Radio
Power Save
Supported
Wireless Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications
CE, FCC, IC
Mounting
Wall/Pole/Fast-Mount (Kits Included)
Operating Temperature
-30 to 70° C (-22 to 158° F)
Operating Humidity
5 to 95% Noncondensing
Advanced Traffic Management
VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Traffic Isolation
Supported
WMM
Voice, Video, Best Effort, and Background
Concurrent Clients
100+
Supported Data Rates (MBPS)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
UAP-AC-M is wireless accesspoint 2x2 MIMO with modulation speed up to 300 Mbps for 2.4GHz band (802.11b/g/n) and up to 866 Mbps for 5GHz band (802.11a/n/ac). The UniFi AC Mesh AP is designed to discreetly integrate into any environment and can be used indoors or outdoors. Device is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af alternative A compatible switch, EdgePoint(TM) EP-R6, UniFi PoE Switch, or the included Gigabit PoEadapter. Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.
The UniFi AC Mesh AP can be mounted on a wall, pole, or fast-mount of a Ubiquiti high.gain antenna. (All accessories are included.)
Unit central management UniFi APs doesn’t have own web GUI and you manage them via UniFi Controller, which you can download on UBNT websites here: http://www.ubnt.com. Or you can manage UAP devices using UniFi Cloud Key which has UniFi Controller preinstalled. Additional benefit is fact that UniFi Controller software is free of costs and includes advanced functions without limitations.
Specifications
Dimensions
353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35?)
Weight
152 g (5.36 oz) with Antennas
Networking Interface
2x2 WiFi dual band / Ethernet Gigabit
Ports
(1) 10/100/1000 Ethernet
Buttons
Reset
Antennas
2 Dualband antennas
Wi-Fi Standards
802.11a/b/g/n/ac
Power Method
24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC)
Power Supply
24V, 0.5A Gigabit PoE Adapter*
Maximum Power Consumption
8.5W
Max TX Power
20 dBm
BSSID
Up to Four per Radio
Power Save
Supported
Wireless Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications
CE, FCC, IC
Mounting
Wall/Pole/Fast-Mount (Kits Included)
Operating Temperature
-30 to 70° C (-22 to 158° F)
Operating Humidity
5 to 95% Noncondensing
Advanced Traffic Management
VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Traffic Isolation
Supported
WMM
Voice, Video, Best Effort, and Background
Concurrent Clients
100+
Supported Data Rates (MBPS)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
