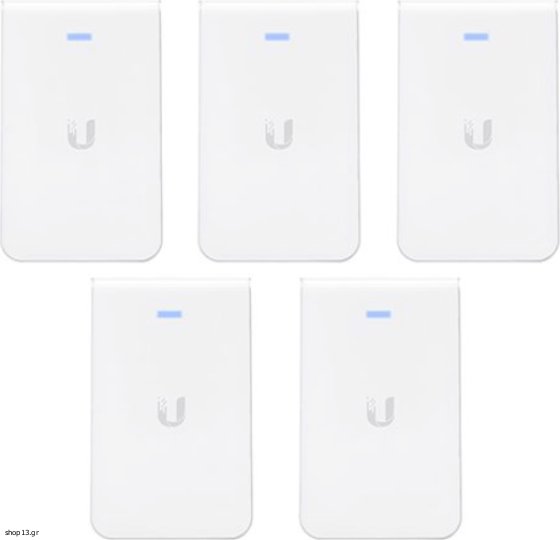

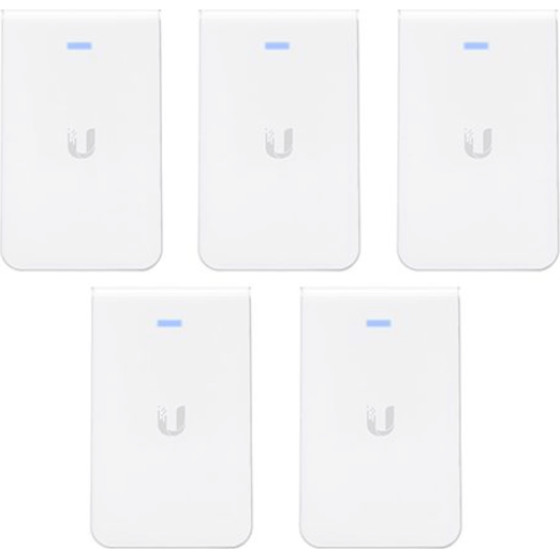

Ubiquiti - (UAP-AC-IW-5)

Easier Than You Think Ideal for new and retrofit installations, the UniFi(R) AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11ac Wi-Fi access point with two Gigabit Ethernet ports. Scalable. Dedicated Wi-Fi per room Easy Setup, Monitoring, and Control Fast. Two radios, 802.11ac The Power of PoE Turn existing wiring into per-room Wi-Fi with the UniFi PoE Switch series.*

* Requires Cat5e or higher UniFi PoE Switch UniFi In-Wall AP Deployments Specifications

Dimensions
139.7 x 86.7 x 25.75 mm


Weight
200 g


Networkin Interface
(3) 10/100/1000 Ethernet Port


Buttons
Reset


Power Method
802.3at PoE+ Supported


Power Supply
UniFi PoE Switch (Not Included)


Power Save
Supported


PoE Out
48V Pass-Through (Pins 1, 2+; 3, 6-)


Maximum Power Consumption

with PoE Passthrough
7W

19W*


Maximum TX Power 2.4 GHz 5 GHz
20 dBm 20 dBm


Antennas

2.4 GHz

5 GHz
(1) Dual-Band Antenna, Single-Polarity

1 dBi

2 dB


Wi-Fi Standards
802.11 a/b/g/n/ac


Wireless Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)


BSSID
Up to 8 per Radio


Mounting
1-Gang Electrical Wall Box (Not Included)


Operating Temperature
-10 to 50° C (14 to 122° F)


Operating Humidity
5 to 95% Noncondensing


Certifications
CE, FCC, IC
