Περιγραφή
Χαρακτηριστικά

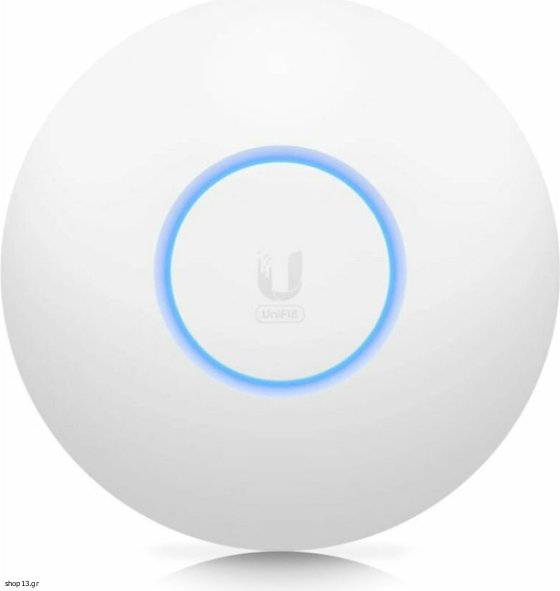

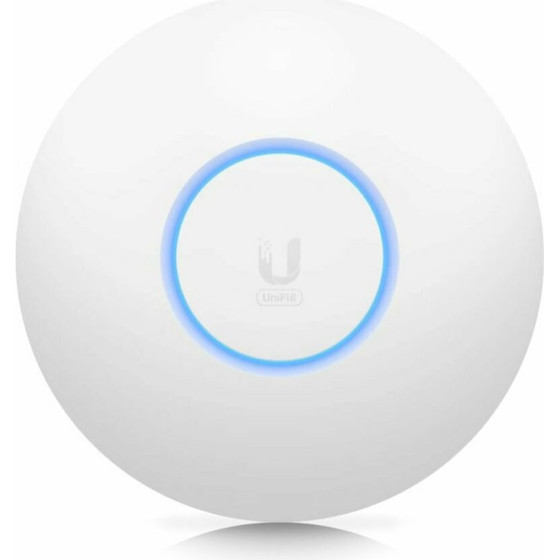

o UniFi Triple-band WiFi 6E AP
o Support 802.11a/b/g/n/ac/ax
o 5 GHz bandwidth up to 4804 Mbps (4x4 MU-MIMO)
o 2.4 GHz bandwidth up to 574 Mbps (2x2 MIMO)
o 2.5-Gigabit LAN port
o 140 m² (1,500 ft²) coverage
o 600+ connected devices
o WiFi6 (4x4 MIMO)
o Powered using PoE+
o Additional 6 GHz radio
o 2.5GbE uplink Specifications
Mechanical
Dimensions
O220 x 48 mm (O8.66 x 1.89?)
Weight
Without mount: 960 g (2.1 lb)
With mount: 1090 g (2.4 lb)
Enclosure materials
Polycarbonate, aluminum
Mount material
Stainless steel (SUS304)
Hardware
Networking interface
(1) 2.5GbE RJ45 port
Management interface
Ethernet
Bluetooth
Power method
PoE+
Power supply
UniFi PoE switch
48V, 0.5A PoE adapter (optional)
Supported voltage range
44--57V DC
Max. power consumption
22W
Max. TX power
2.4 GHz
22 dBm
5-7 GHz
26 dBm
MIMO
2.4 GHz
2 x 2 (UL MU-MIMO)
5 GHz
4 x 4 (DL/UL MU-MIMO)
6 GHz
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
573.5 Mbps
5 GHz
4.8 Gbps
6 GHz
4.8 Gbps
Antenna gain
2.4 GHz
3.2 dBi
5 GHz
5.3 dBi
6 GHz
6 dBi
LEDs
White/blue
Button
Reboot and factory-reset
Mounting
Wall/ceiling (included)
Operating temperature
-30 to 60° C (-22 to 140° F)
Operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6/WiFi 6E
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
600+
Zero wait DFS
Yes
Supported Data Rates (Mbps)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network
Version 7.2.91 and later
