Ubiquiti - (RD-5G34)
[Κωδικός : 465182]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή

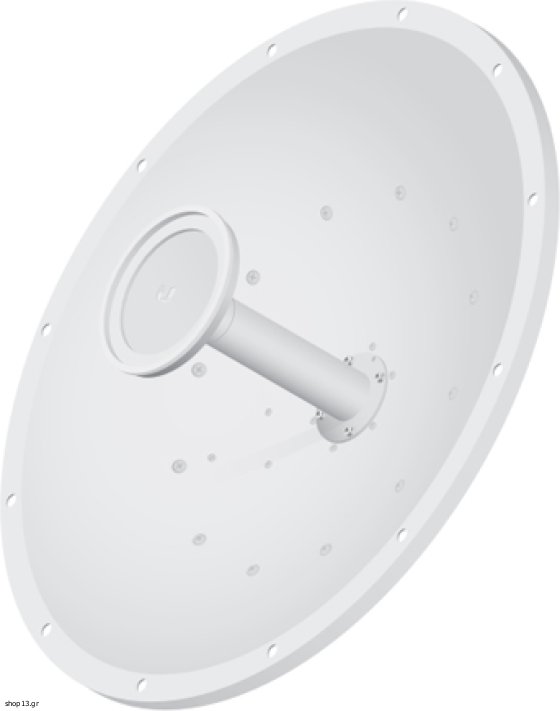

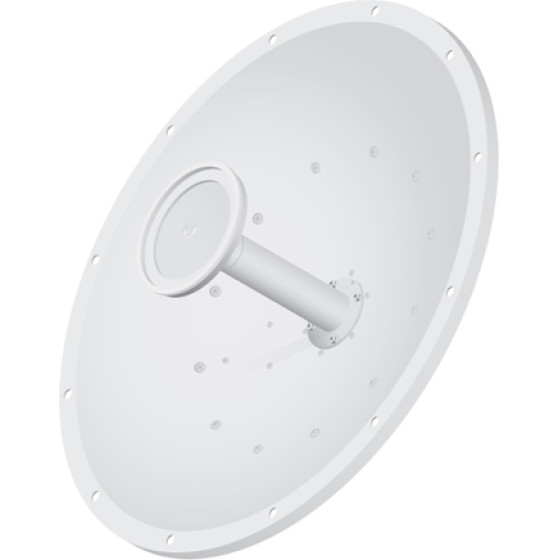

5GHz AirMax 2x2 MIMO PtP Dish Antenna
Instantly pair with Rocket M5 to create powerful 2x2 MIMO PtP Bridging applications.
Mating bracket and weatherproof RF jumpers included.
Specifications
Frequency Range
4.9-5.90GHz
Gain
32.1-34.2 dBi
Polarization
Dual Linear
Cross-pol Isolation
35 dBi min
Max VSWR
1.4:1
Hpol Beamwidth (6dB)
3 deg
Vpol Beamwidth (6dB)
3 deg
Elevation Beamwidth (6dB)
3 deg
Electrical Downtilt
-42 dB
ETSI Specification
EN 302 326 DN2
Dimensions
972mm diameter
Weight
13.5kg
Windloading
100mph
Instantly pair with Rocket M5 to create powerful 2x2 MIMO PtP Bridging applications.
Mating bracket and weatherproof RF jumpers included.
Specifications
Frequency Range
4.9-5.90GHz
Gain
32.1-34.2 dBi
Polarization
Dual Linear
Cross-pol Isolation
35 dBi min
Max VSWR
1.4:1
Hpol Beamwidth (6dB)
3 deg
Vpol Beamwidth (6dB)
3 deg
Elevation Beamwidth (6dB)
3 deg
Electrical Downtilt
-42 dB
ETSI Specification
EN 302 326 DN2
Dimensions
972mm diameter
Weight
13.5kg
Windloading
100mph
Χαρακτηριστικά
Μοντέλο
Ubiquiti - (RD-5G34)
