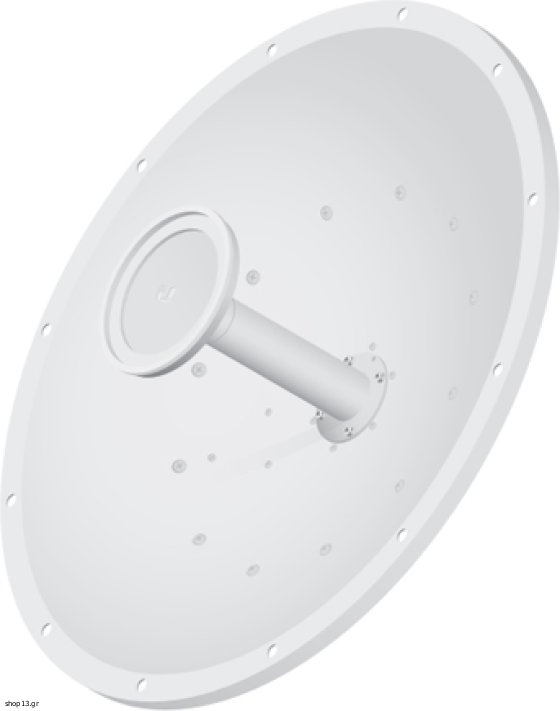

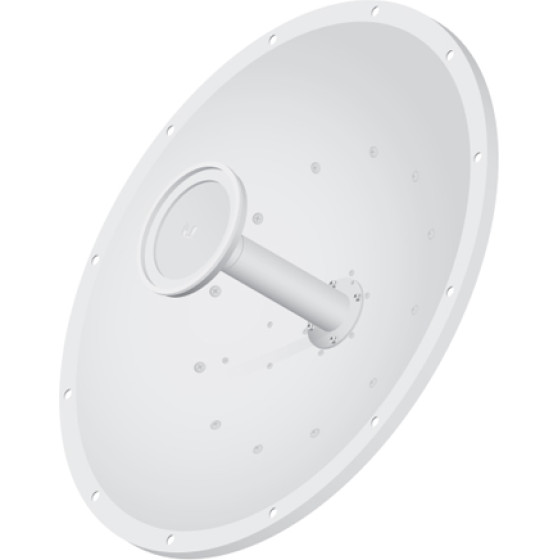

Ubiquiti - (RD-5G30)

Features:
Carrier Class Performance. Breakthrough Price Points. Instantly pair with Rocket M5 to create powerful 2x2 MIMO PtP Bridging applications. Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
Specifications


Dimensions
650 x 650 x 304 mm (25.6 x 25.6 x 11.97?)


Weight
9.8 kg (21.61 lb)


Frequency Range
4.9 - 5.8 GHz


Gain
4.9 GHz: 26 dBi

5 - 5.9 GHz: 30 dBi


HPOL Beamwidth
5° (3 dB)


VPOL Beamwidth
5° (3 dB)


F/B Ratio
34 dB


Max. VSWR
1.4:1


Wind Loading
787 N @ 200 km/h (177 lbf @125 mph)


Wind Survivability
200 km/h (125 mph)


Polarization
Dual-Linear


Cross-pol Isolation
35 dB Min.


ETSI Specification
EN 302 326 DN2


Mounting
Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
