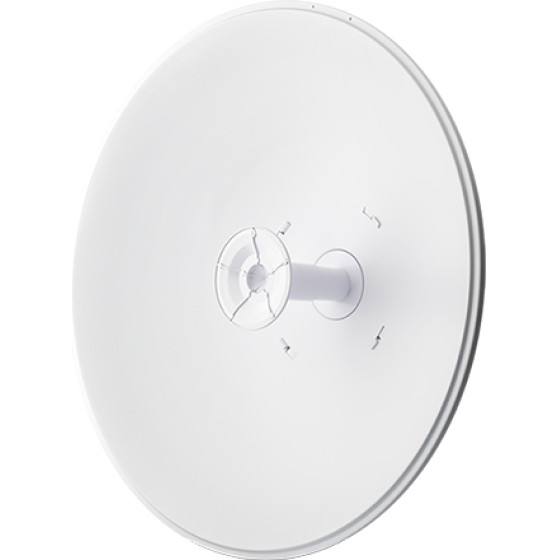

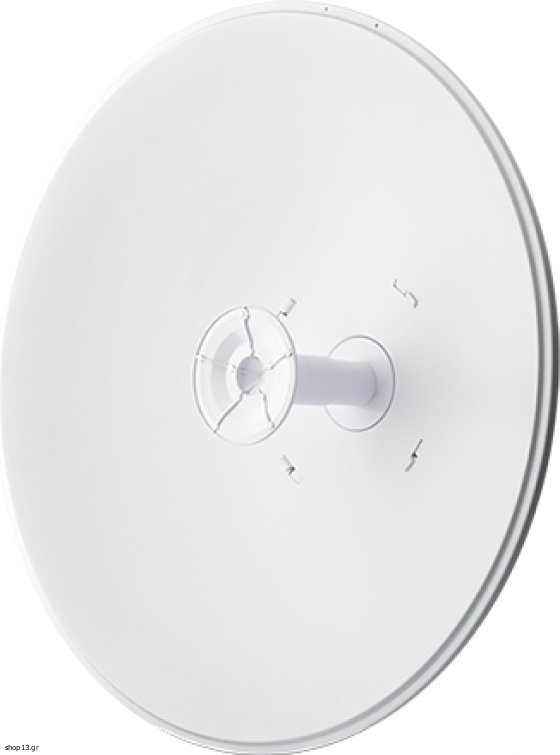

Ubiquiti - (RD-5G30-LW)

Innovative Industrial Design
Weighing in at only 7.4 kg, the RocketDish LW is engineered with ruggedized yet lightweight components to withstand harsh outdoor conditions.
Plug and Play Integration
The RocketDish LW has a built-in Rocket(TM) mount, so no tools are needed to install the Rocket BaseStation.
Optional Isolator Radome
The Isobeam(TM) enhances isolation performance for co-location and features an integrated protective radome.
Optional Alignment Accessory
The Precision Alinement Kit enables extremely accurate aiming for optimal link performance.
Specifications

Dimensions
650 x 650 x 304 mm (25.6 x 25.6 x 11.97?)


Weight
9.8 kg (21.61 lb


Frequency Range
4.9 - 5.8 GHz


Gain
4.9 GHz: 26 dBi 5 - 5.9 GHz: 30 dBi


HPOL Beamwidth
5° (3 dB)


VPOL Beamwidth
5° (3 dB)


F/B Ratio
34 dB


Max. VSWR
1.4:1


Wind Loading
790 N @ 200 km/h (178 lbf @ 125 mph)


Wind Survivability
200 km/h (125 mph)


Polarization
Dual-Linear


Cross-pol Isolation
35 dB Min


ETSI Specification
EN 302 326 DN2


Mounting
Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
