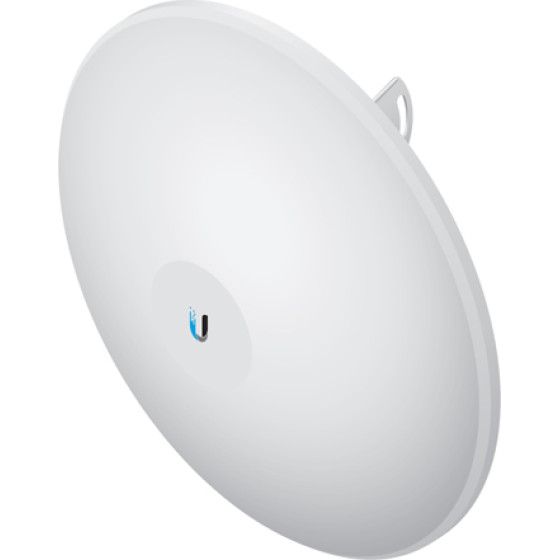

Ubiquiti - (PBE-5AC-500)
[Κωδικός : 465167]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Description
Using airMAX ac technology, the Ubiquiti PowerBeam AC PBE-5AC-500 supports up to 450+ Mbps real TCP/IP throughput. It launches with PtP functionality, and a client mode feature will be added with a future firmware upgrade. The PBE-5AC-500 also includes a protective radome to shield the radio from the elements.
Ubiquiti PowerBeam ac Features
Frequency - 5 GHz
Throughput - 450+ Mbps
Range - 25+ km
Gain 27 dBi
Dish Reflector 500 mm
Plug and Play Installation Innovative Mechanical Design- Built-in mechanical tilt
The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the PowerBeam on the pole Easy removal The antenna feed can be detached with the push of a button Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners Dish and brackets Made of galvanized steel that is powder-coated for superior corrosion resistance. Redesigned pole bracket for the 500 and 400 mm dish and fender washers for the 300 mm dish prevent paint from being removed from the metal brackets for improved corrosion resistance.
Specifications
Dimensions (No Mount)
Radome Excluded: 520 x 520 x 308 mm
Radome Included: 525 x 525 x 315 mm
Weight (No Mount)
Radome Excluded: 2.35 kg
Radome Included: 3.15 kg
Power Supply
24V, 0.5 A Gigabit PoE
Max. Power Consumption
8.5 W
Power Method
Passive PoE (pairs 4, 5+ ; 7, 8 Return)
Supported Voltage Range
20-26VDC
Operating Frequency
Worldwide: 5150- 5875 MHz
USA: U-NII-1: 5150- 5250 MHz
USA: U-NII-2A: 5250- 5350 MHz
USA: U-NII-2C: 5470-5725 MHz
USA: U-NII-3: 5725- 5850 MHz
Gain
27 dBi
Networking Interface
(1) 10/100/1000 Ethernet Port
Processor Specs
Atheros MIPS 74Kc, 720 MHz
Memory
128 MB DDR2, 16 MB Flash
LEDs
(1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs
Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR
1.5:1
Channel Sizes
PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
Polarization
Dual Linear
Enclosure
Outdoor UV Stabilized Plastic
Mounting
Pole Mounting Kit (Included)
Wind Loading
264.6 N @ km/h
Wind Survivability
96 km/h
ESD/EMP Protection
Air: ± 24 kV, Contact: ± kV
Operating Temperature
-40 to 70° C
Operating Humidity
5 to 95% Noncondensing
Wereless Approvals
FCC, IC, CE
RoHS Compliance
Yes
Salt Fog Test
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test
IEC 68-2-6
Temperature Shock Test
IEC 68-2-14
UV Test
IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Using airMAX ac technology, the Ubiquiti PowerBeam AC PBE-5AC-500 supports up to 450+ Mbps real TCP/IP throughput. It launches with PtP functionality, and a client mode feature will be added with a future firmware upgrade. The PBE-5AC-500 also includes a protective radome to shield the radio from the elements.
Ubiquiti PowerBeam ac Features
Frequency - 5 GHz
Throughput - 450+ Mbps
Range - 25+ km
Gain 27 dBi
Dish Reflector 500 mm
Plug and Play Installation Innovative Mechanical Design- Built-in mechanical tilt
The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the PowerBeam on the pole Easy removal The antenna feed can be detached with the push of a button Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners Dish and brackets Made of galvanized steel that is powder-coated for superior corrosion resistance. Redesigned pole bracket for the 500 and 400 mm dish and fender washers for the 300 mm dish prevent paint from being removed from the metal brackets for improved corrosion resistance.
Specifications
Dimensions (No Mount)
Radome Excluded: 520 x 520 x 308 mm
Radome Included: 525 x 525 x 315 mm
Weight (No Mount)
Radome Excluded: 2.35 kg
Radome Included: 3.15 kg
Power Supply
24V, 0.5 A Gigabit PoE
Max. Power Consumption
8.5 W
Power Method
Passive PoE (pairs 4, 5+ ; 7, 8 Return)
Supported Voltage Range
20-26VDC
Operating Frequency
Worldwide: 5150- 5875 MHz
USA: U-NII-1: 5150- 5250 MHz
USA: U-NII-2A: 5250- 5350 MHz
USA: U-NII-2C: 5470-5725 MHz
USA: U-NII-3: 5725- 5850 MHz
Gain
27 dBi
Networking Interface
(1) 10/100/1000 Ethernet Port
Processor Specs
Atheros MIPS 74Kc, 720 MHz
Memory
128 MB DDR2, 16 MB Flash
LEDs
(1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs
Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR
1.5:1
Channel Sizes
PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
Polarization
Dual Linear
Enclosure
Outdoor UV Stabilized Plastic
Mounting
Pole Mounting Kit (Included)
Wind Loading
264.6 N @ km/h
Wind Survivability
96 km/h
ESD/EMP Protection
Air: ± 24 kV, Contact: ± kV
Operating Temperature
-40 to 70° C
Operating Humidity
5 to 95% Noncondensing
Wereless Approvals
FCC, IC, CE
RoHS Compliance
Yes
Salt Fog Test
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test
IEC 68-2-6
Temperature Shock Test
IEC 68-2-14
UV Test
IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
