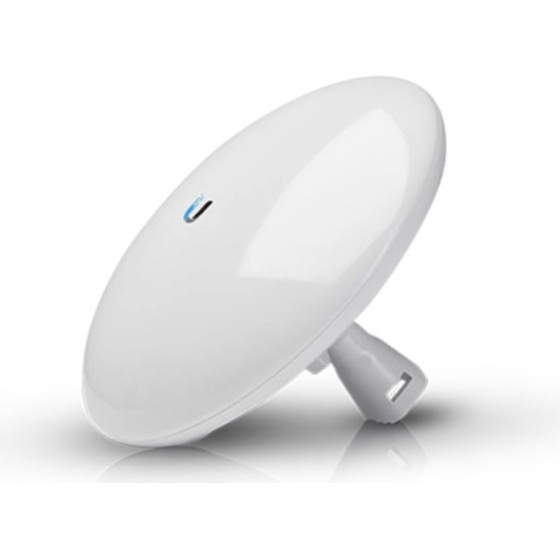

The Ubiquiti NanoBeam AC Gen2 is an airMAX CPE (Customer Premises Equipment) is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
Key Features Frequency 5 Ghz
Throughput 450+
Mbps Range 15+ km
Improved Wide Bandwidth Antenna
Dedicated Wi-Fi Radio for Management airMAX ac Processor for Superior Performance
Specifications
Dimensions
189 x 189 x 125 mm (7.44 x 7.44 x 4.92?)
Weight
0.530 kg (1.17 lb)
Power Supply
24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption
8.5W
Gain
19 dBi
Networking Interface
(2) 10/100/1000 Ethernet Ports Wi-Fi for Management
Processor Specs
Atheros MIPS 74Kc, 720 MHz
Memory
128 MB DDR2, 8 MB Flash
LEDs
Power, Ethernet, (4) Signal Strength
Signal Strength LEDs
Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR
1.5:1
Channel Sizes
PtP Mode: 10/20/30/40/50/80 MHz
PtMP Mode: 10/20/30/40 MHz
Polarization
Dual Linear
Enclosure
Outdoor UV Stabilized Plastic
Mounting
Pole-Mount (Kit Included), Wall-Mount
Wind Loading
45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
Wind Survivability
200 km/h (125 mph)
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature
-40 to 80° C (-40 to 176° F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
RoHS Compliance
Yes
Salt Fog Test
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test
IEC 68-2-6
Temperature Shock Test
IEC 68-2-14
UV Test
IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
