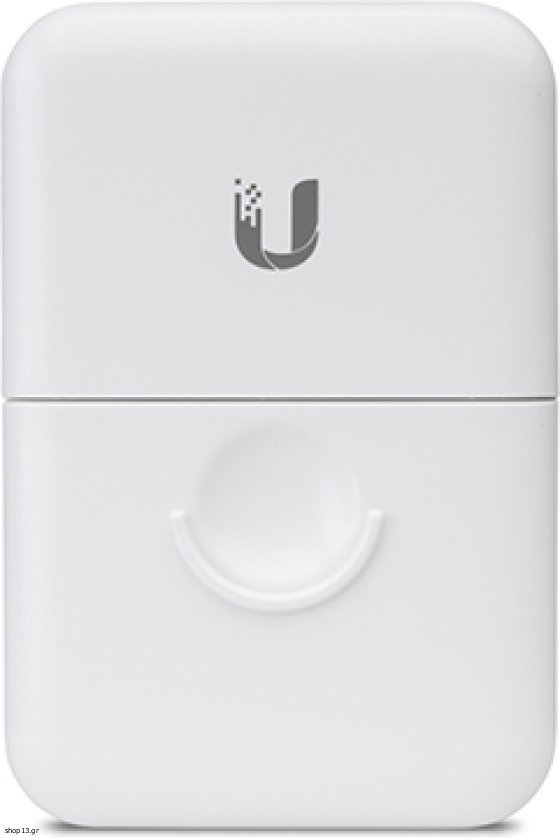

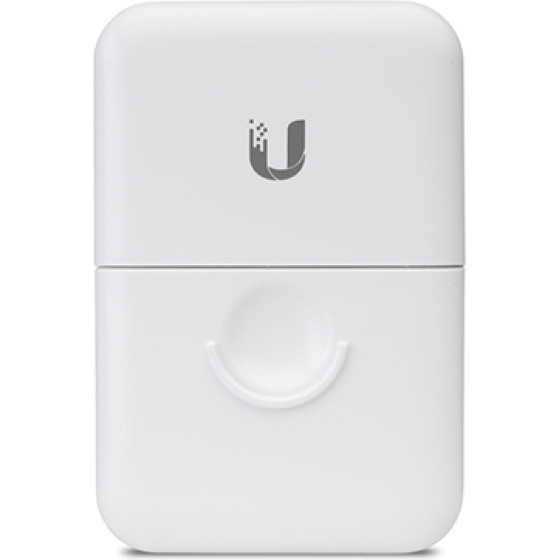

Ubiquiti - (ETH-SP-G2)

Description
Introducing the next generation Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti Networks. The ETH-SP-G2 is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.
The ETH-SP-G2 is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.
Specifications


Dimensions
91 x 61 x 32.5 mm (3.58 x 2.4 x 1.28?)


Weight
80 g


Interface Connections
(2) RJ45 Female Connectors


ESD/EMP Protection
Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/μs


DC Spark-Over Voltage
90V @ 100V/s


Maximum Impulse Spark-Over Voltage
700V @ 1kV/μs


Discharge Current
10kA+


Maximum Insulation Resistance
1G ohm @ 50V


Maximum Capacitance
1.0 pF @ 1 MHz


Data Line Protection
RJ45 10/100/1000 Ethernet


IEEE 802.3af PoE Support
Yes


Shock and Vibration Certification
ETSI300-019-1.4 Standard


Operating Temperature
-30 to 65° C (-22 to 149° F)


Operating Humidity
10 to 90% Noncondensing
