Ubiquiti - (AMO-5G13)

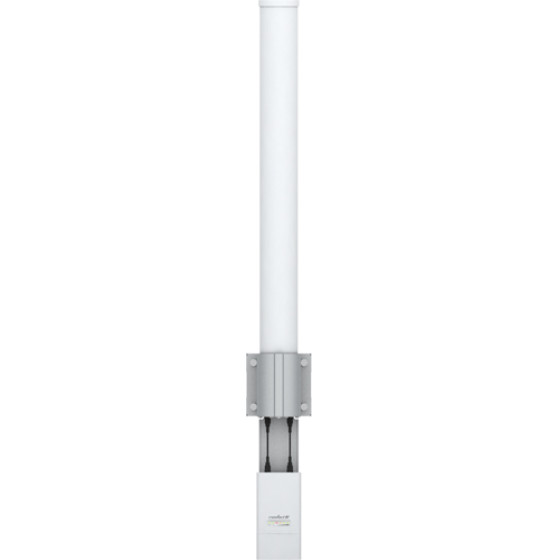

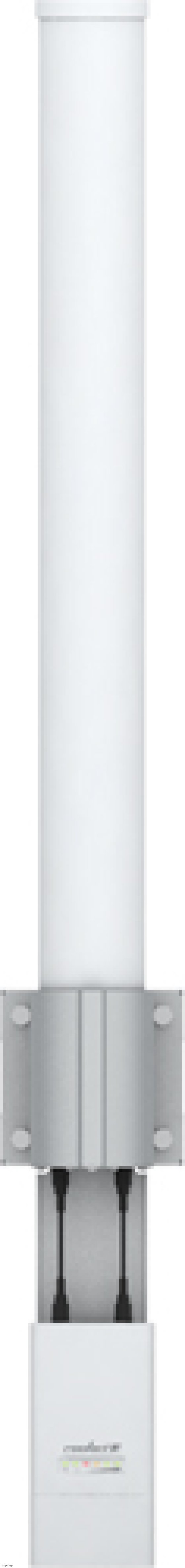

Ubiquiti AIRMAX Omni 5.45 - 5.85 GHz 13dbi Omni-directional Antenna
irMax Omni is a Carrier Class 2x2 Dual Polarity MIMO omnidirectional antenna that was designed to seamlessly integrate with Rocket M radios (Rocket M sold separately). Rocket M combines the "brains" in one robust unit; just pair Rocket M with AirMax Omni to create powerful 360° omnidirectional basestation.
This seamless integration gives network architects unparalleled
Unlike standard WiFi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) AirMax protocol allows each client to send & receive data using pre-designated time slots scheduled by an intelligent AP controller. This "time slot" method eliminates hidden node collisions & maximizes air time efficiency. It provides many magnitudes of performance improvements in latency, throughput, & scalability compared to all other outdoor systems in its class. Intelligent QoS Priority is given to voice/video for seamless access. Includes

-Airmax Omni Antenna

-Weatherproof RF cables

-Rocket M Mount

-Universal Pole Mount
Specifications


Dimensions
799 x 90 x 65 mm


Weight
0.82 kg


Frequency Range
5.45 - 5.85 GHz


Gain
13 dBi


Elevation Beamwidth
7°


Max VSWR
1.5:1


Downtilt
2°


Wind Survivability
200 km/h


Wind Loading
84.52 N @ 200 km/h


Polarization
Dual-Linear


Cross-pol Isolation
25 dB min.


ETSI Specification
EN 302 326 DN2


Mounting
Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
