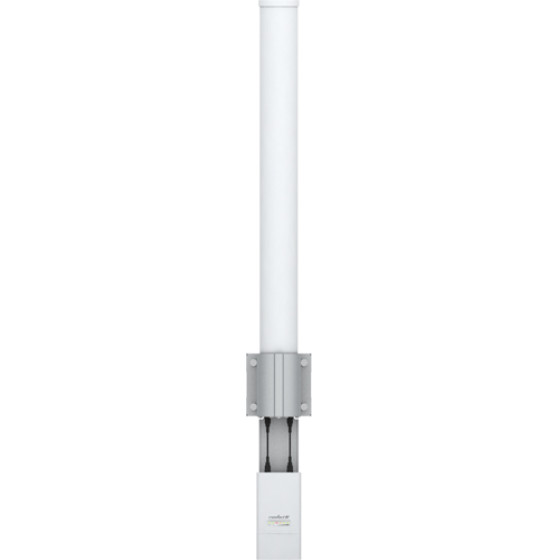

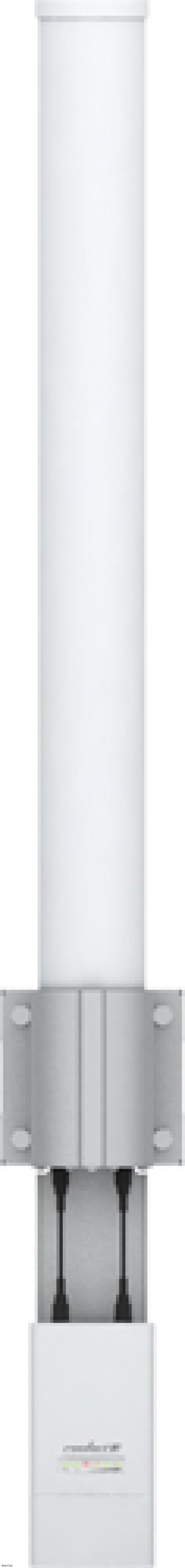

Ubiquiti - (AMO-5G10)

Ubiquiti AIRMAX Omni 5.45 - 5.85 GHz 10dbi Omni-directional Antenna
AirMax Omni is a Carrier Class 2x2 Dual Polarity MIMO omnidirectional antenna that was designed to seamlessly integrate with Rocket M radios (Rocket M sold separately). Rocket M combines the "brains" in one robust unit; just pair Rocket M with AirMax Omni to create powerful 360° omnidirectional basestation.
Unlike standard WiFi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) AirMax protocol allows each client to send & receive data using pre-designated time slots scheduled by an intelligent AP controller. This "time slot" method eliminates hidden node collisions & maximizes air time efficiency. It provides many magnitudes of performance improvements in latency, throughput, & scalability compared to all other outdoor systems in its class. Intelligent QoS Priority is given to voice/video for seamless access.

Includes

-Airmax Omni Antenna

-Weatherproof RF cables

-Rocket M Mount

-Universal Pole Mount
Specifications


Dimensions
582 x 90 x 65 mm


Weight
0.68 kg


Frequency Range
5.45 - 5.85 GHz


Gain
10 dBi


Elevation Beamwidth
12°


Max VSWR
1.6:1


Downtilt
4°


Wind Survivability
200 km/h


Wind Loading
71.17 N @ 200 km/h


Polarization
Dual-Linear


Cross-pol Isolation
25 dB min.


ETSI Specification
EN 302 326 DN2


Mounting
Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
