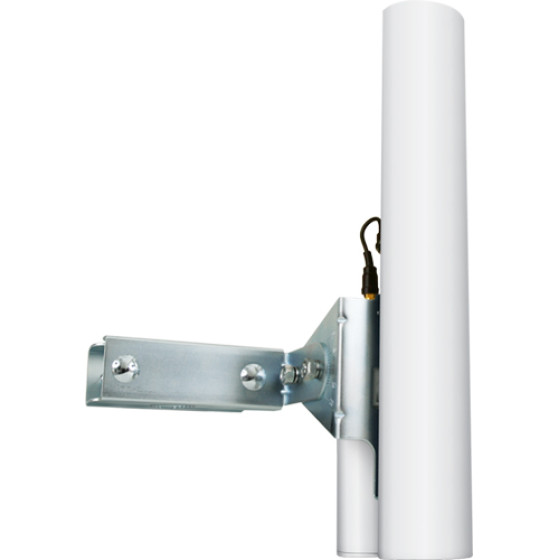

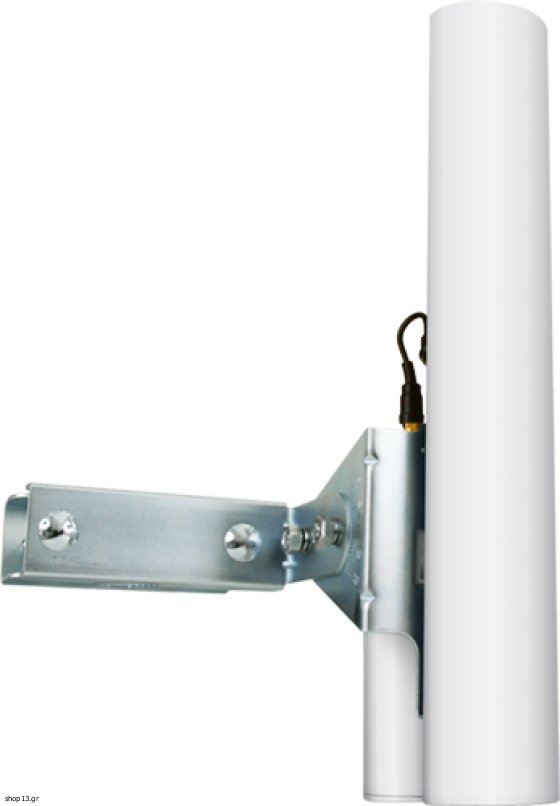

Ubiquiti - (AM-5G16-120)

Description
The airMAX(R) Sector Antenna is a carrier-class 2x2 dual-polarity MIMO sector antenna that was designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Sector Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.
Flexibility
To support your specific application, the airMAX Sector Antenna is available in several frequency models:
o 900 MHz
o 2.4 GHz
o 3 GHz
o 5 GHz
High Performance
Highly resistant to noise interference, the airMAX Sector Antenna provides superior gain and beam performance for high-capacity, multipoint networks.
Durable Construction
Each airMAX Sector Antenna is designed with robust mechanical design for outdoor application use.
Plug and Play Integration
Every airMAX Sector Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Sector Antenna for your application. Pair the Rocket radio with the airMAX Sector Antenna to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.
Specifications


Frequency Range
5.10-5.90GHz


Gain
15.0-16.0dBi


Polarization
Dual Linear


Cross-pol Isolation
22dB min


Max VSWR
1.5:1


Hpol Beamwidth (6dB)
137 deg


Vpol Beamwidth (6dB)
118 deg


Elevation Beamwidth (6dB)
8 deg


Electrical Downtilt
4 deg


ETSI Specification
EN 302 326 DN2


Dimensions
367X63X41mm


Weight
1.1kg


Windloading
120mph
