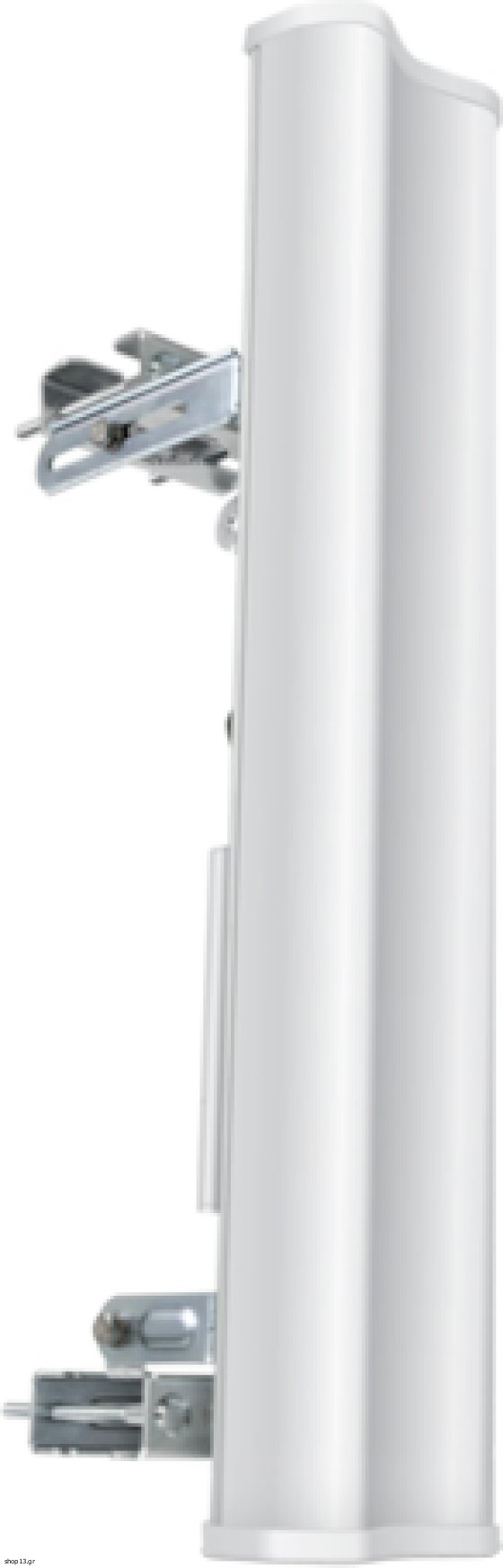

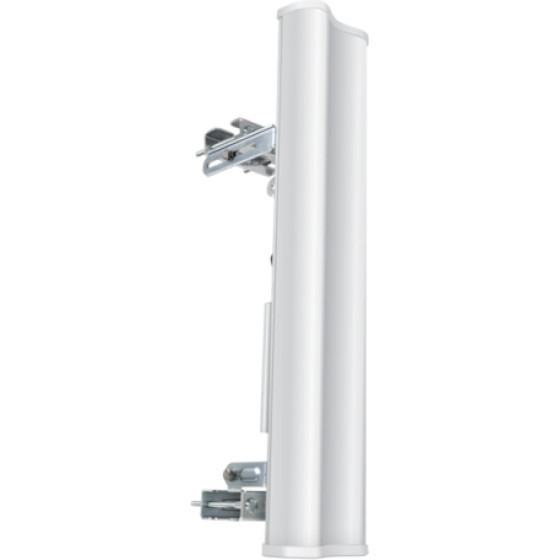

Ubiquiti - (AM-2G16-90)

Description
Designed to seamlessly integrated with Ubiquiti airMAX Rocket hardware for powerful basestation applications. Featuring great cross-pol isolation, gain, beamwidth patterns, and adjacent frequency noise attenuation performance.
The airMAX(R) Sector Antenna is a carrier-class 2x2 dual-polarity MIMO sector antenna that was designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Sector Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.
Flexibility To support your specific application, the airMAX Sector Antenna is available in several frequency models:
o 900 MHz
o 2.4 GHz
o 3 GHz
o 5 GHz
High Performance Highly resistant to noise interference, the airMAX Sector Antenna provides superior gain and beam performance for high-capacity, multipoint networks.
Durable Construction Each airMAX Sector Antenna is designed with robust mechanical design for outdoor application use.
Plug and Play Integration Every airMAX Sector Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Sector Antenna for your application. Pair the Rocket radio with the airMAX Sector Antenna to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.
Specifications


Dimensions
700 x 145 x 79 mm


Weight
3.9 kg


Frequency Range
2.3 - 2.7 GHz


Gain
16.0 - 17.0 dBi


HPOL Beamwidth
91° (6 dB)


VPOL Beamwidth
90° (6 dB)


Electrical Beamwidth
9°


Electrical Downtilt
4°


Max. VSWR
1.5:1


Wind Survivability
200 km/h


Wind Loading
169 N @ 200 km/h


Polarization
Dual-Linear


Cross-pol Isolation
28 dB Min


ETSI Specification
EN 302 326 DN2


Mounting
Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
