Ubiquiti AF60-Lr | Radioline | Airfiber Long Range, 60GHz, 1x RJ45 1000Mb/s, 43dBi, Gps - (AF60-LR-EU)

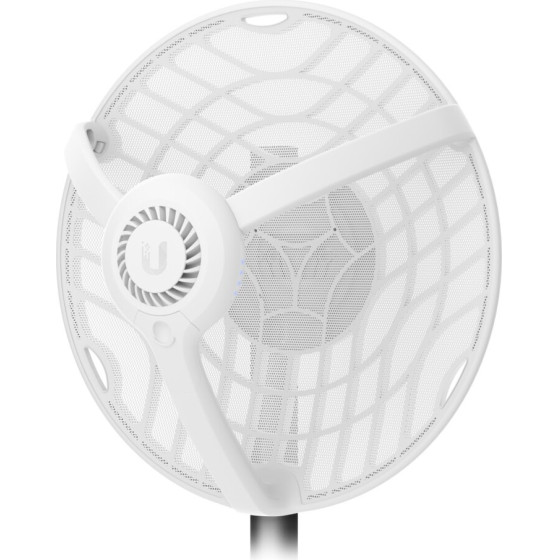

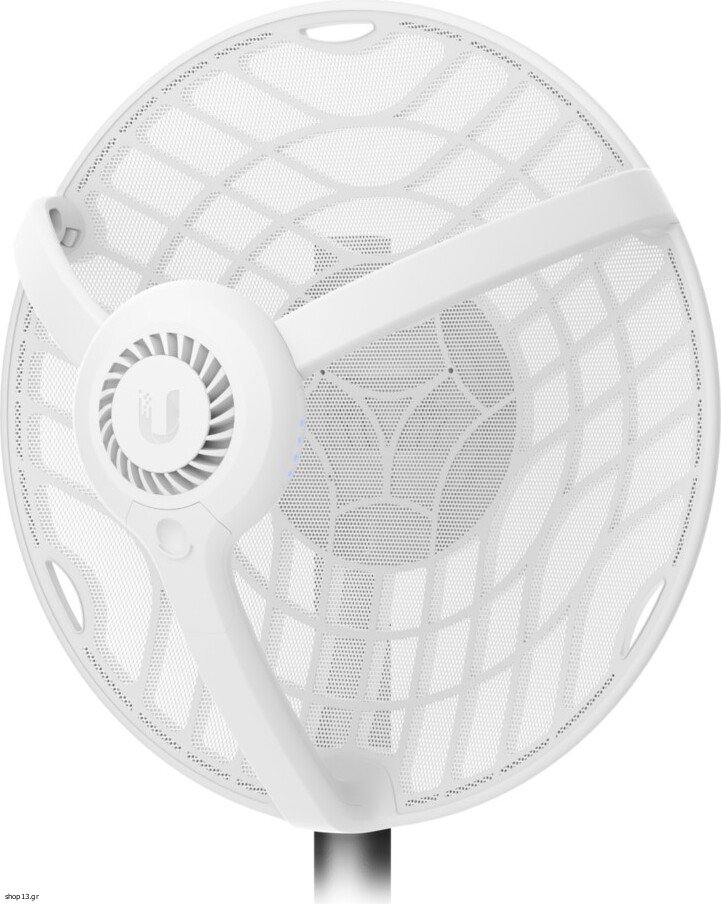

Ubiquiti airFiber 60 LR (AF60-LR)
The airFiber 60 GHz LR radio system with wave technology and true duplex gigabit performance is designed for long distance PtP links. With the AF60-LR, it is possible to establish links at distances greater than 12 km, while the regular airFiber 60 (AF60) is only designed for 2+ km.
Hardware
At the heart of the AF60-LR is a powerful Quad-Core ARM Cortex A7 CPU, which along with 256 MB of DDR3 RAM provides excellent performance. There is one 10/100/1000 Mbps RJ45 Ethernet port for network connection.
The airFiber 60 Long Range operates in the 57 - 71 Ghz frequency range, depending on the region. It simultaneously supports 2160 and 1080 Mhz channel widths. The maximum transmitter power is 21 dBm and the antenna gain is 43 dBi, which provides data transmission over 12 km in line of sight. The maximum throughput can reach 1.8 Gbps.
Despite quite powerful parameters, the device is very compact and light - ?413 mm and weighs only 1.5 kg (about 2.7 kg with the mount). The access point is powered using Passive PoE (Pairs 4, 5+; 7, 8-) via 48vdc, 0.65 A Gigabit PoE adapter. The device is designed for outdoor use and can adequately withstand temperature conditions ranging from -40 to 60° C.
Ubiquiti airFiber 60 LR features
The AF60 LR is a 60 GHz radio module designed for high performance communication in the extended band. AirFiber 60 LR has a built-in 43 dBi high-gain antenna for high-speed point-to-point (PtP) communication channels over long distances. The new WaveTechnology provides amazing long-distance performance in the 60 GHz band and delivers transmission rates of over 1.8 Gbps.
Advantage:Advantage:60 GHz low interference spectrumBuilt-in GPS Long range, up to 12 kmA mount for precise alignment includedQuick setup using the UISP application
The access point includes a built-in Bluetooth Radio Control Module for easy setup. There is also a built-in GPS.
