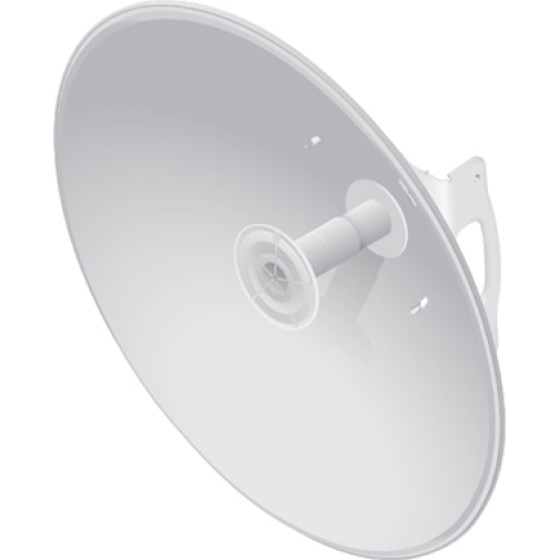

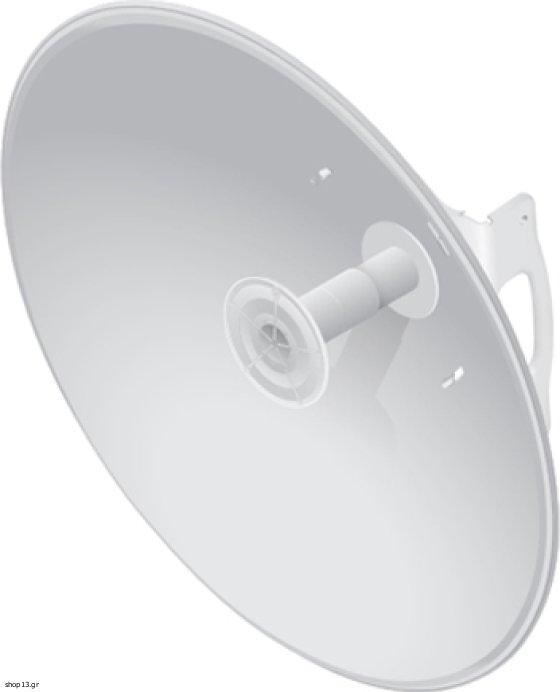

Ubiquiti - (AF-5G30-S45)

Compact Footprint for Deployment Flexibility
The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.
Plug and Play Integration
The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.
Advanced RF Isolation Design
The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.
Specifications


Dimensions
o 650 x 386 mm


Weight
7.4 kg


Frequency Range
4.9 - 5.9 GHz


Gain
4.9 GHz: 26 dBi 5 - 5.9 GHz: 30 dB


+ 45° Beamwidth
5.8° (3 dB)


- 45° Beamwidth
5.8° (3 dB)


F/B Ratio
30 dB


Max. VSWR
1.6:1


Wind Loading
790 N @ 200 km/h (178 lbf @ 125 mph)


Wind Survivability
200 km/h (125 mph)


Polarization
Dual-Linear


Cross-pol Isolation
35 dB Min.


ETSI Specification
EN 302 326 DN2


Mounting
Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included
