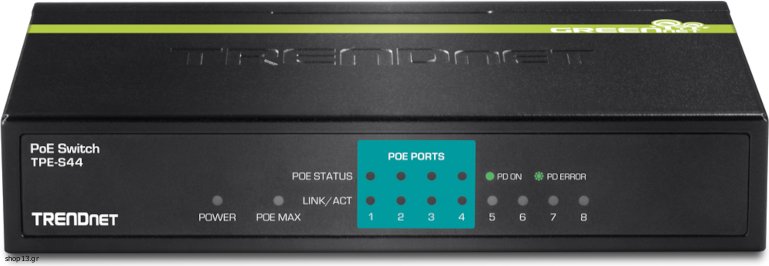

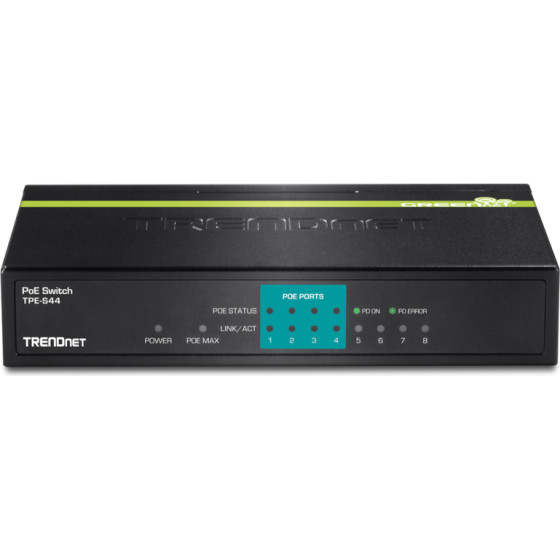

TRENDnet - (TPE-S44)
[Κωδικός : 464988]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Description
TPE-S44 8-Port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure.
Features
o IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
o 8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports
o Built-in 4 PoE Ports (Port 1 ~ Port 4)
o Supports PoE Power Maximum 15.4 watts for each POE port
o Supports PoE Powered Device(PD) classifi cation identify
o Full Wire-Speed Non-Blocking Reception and Transmission
o Store and Forward Switching Method
o 96Kbytes RAM Data Buffer and 1K entries MAC Address Table
o Extensive Diagnostic LED’s on the Front Panel
o IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode
Specifications
Standards IEEE 802.1p QoS
IEEE 802.3
IEEE 802.3u
IEEE 802.3af (15.4 Watts / port)
IEEE 802.3az
IEEE 802.3x
Device Interface 4 x 10/100Mbps PoE ports (port 1~4)
4 x 10/100Mbps Fast Ethernet ports
LED indicators
Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Performance Data RAM Buffer: 96KB
Switch Fabric: 1.6Gbps
MAC Address Table: 2 K entries
Forwarding rate: 1.19Mpps (64-byte packet size)
Special Features
GREENnet energy saving technology
Power Input: 110-240 V AC, 50 / 60 Hz, 0.75 A
Output: 48 V DC, 0.8 A
Consumption: 2.1 Watts (Max. without PD)
PoE PoE budget: 30 Watts
Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Operating Temperature
0 - 45 °C (32 - 113 °F)
Operating Humidity
Max. 90% non-condensing
Dimensions
150 x 96 x 28mm (5.9 x 3.8 x 1.1 in.)
Weight
370g (12.9 oz.)
Certifications CE
FCC
TPE-S44 8-Port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure.
Features
o IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
o 8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports
o Built-in 4 PoE Ports (Port 1 ~ Port 4)
o Supports PoE Power Maximum 15.4 watts for each POE port
o Supports PoE Powered Device(PD) classifi cation identify
o Full Wire-Speed Non-Blocking Reception and Transmission
o Store and Forward Switching Method
o 96Kbytes RAM Data Buffer and 1K entries MAC Address Table
o Extensive Diagnostic LED’s on the Front Panel
o IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode
Specifications
Standards IEEE 802.1p QoS
IEEE 802.3
IEEE 802.3u
IEEE 802.3af (15.4 Watts / port)
IEEE 802.3az
IEEE 802.3x
Device Interface 4 x 10/100Mbps PoE ports (port 1~4)
4 x 10/100Mbps Fast Ethernet ports
LED indicators
Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Performance Data RAM Buffer: 96KB
Switch Fabric: 1.6Gbps
MAC Address Table: 2 K entries
Forwarding rate: 1.19Mpps (64-byte packet size)
Special Features
GREENnet energy saving technology
Power Input: 110-240 V AC, 50 / 60 Hz, 0.75 A
Output: 48 V DC, 0.8 A
Consumption: 2.1 Watts (Max. without PD)
PoE PoE budget: 30 Watts
Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Operating Temperature
0 - 45 °C (32 - 113 °F)
Operating Humidity
Max. 90% non-condensing
Dimensions
150 x 96 x 28mm (5.9 x 3.8 x 1.1 in.)
Weight
370g (12.9 oz.)
Certifications CE
FCC
