Περιγραφή

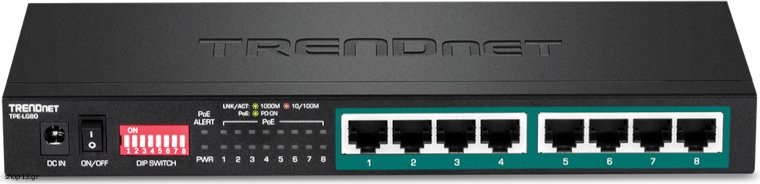

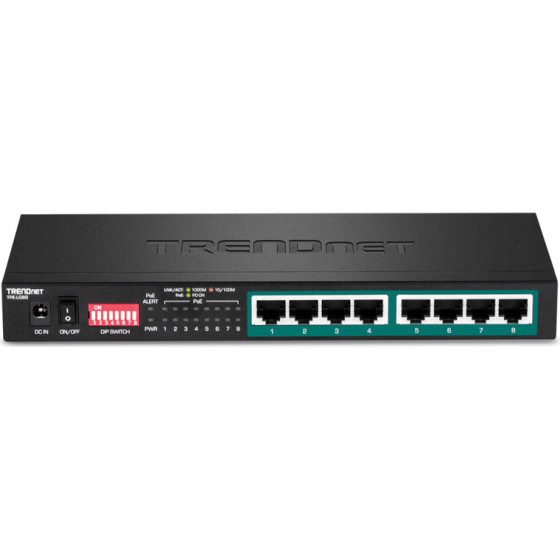

8-Port Gigabit Long Range PoE+ Switch Easy installation
8 x Gigabit PoE+ ports
Enable the DIP switch to extend PoE+ signal up to 200m (656 ft.) at 10Mbps
DIP switch supports VLAN port isolation and QoS
16Gbps switching capacity
65W PoE budget
Wall mountable design
Sturdy metal switch
Use with TRENDnet’s PoE splitter to network and power non-PoE devices
Specifications
Standards IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3p
IEEE 802.3af
IEEE 802.3at
IEEE 802.3az
Device Interface 8 x Gigabit PoE+ ports
LED indicators
DIP switch
Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
Performance Switch Fabric: 16Gbps
RAM Buffer: 192KB
MAC Address Table: 4K entries
Jumbo Frames: 9KB
Forwarding rate: 11.9Mpps (64-byte packet size)
Special Features Long range PoE+ up to 200m at 10Mbps
VLAN port isolation
802.1p Class of Service (CoS)
Wall mountable
DIP Switch Switch
Status
Function
1
OFF
Ports 1 & 2: Default gigabit PoE+
ON
Ports 1 & 2: Long range PoE+ up to 200m at 10Mbps
2
OFF
Ports 3 & 4: Default gigabit PoE+
ON
Ports 3 & 4: Long range PoE+ up to 200m at 10Mbps
3
OFF
VLAN port isolation disabled
ON
VLAN port isolation on ports 1-4
4
OFF
QoS disabled
ON
QoS Enabled: Video & Voice - High Priority
5
OFF
Port 5: Default gigabit PoE+
ON
Port 5: Long range PoE+ up to 200m at 10Mbps
6
OFF
Port 6: Default gigabit PoE+
ON
Port 6: Long range PoE+ up to 200m at 10Mbps
7
OFF
Port 7: Default gigabit PoE+
ON
Port 7: Long range PoE+ up to 200m at 10Mbps
8
OFF
VLAN port isolation disabled
ON
VLAN port isolation on ports 5-7
*DIP Switch 3 & 8 cannot be enabled at the same time
Power Input: 100 - 240 V AC, 50/60Hz, 2.5A
Output: 55V DC, 1.3A external power adapter
Max. consumption: 70.6W
PoE PoE budget: 65 Watts
PoE Mode A: Pins 1,2 for power and pins 3,6 for power
Operating Temperature
0° - 40 °C (32° - 104 °F)
Operating Humidity
Max. 90% non-condensing
Dimensions
240 x 105 x 27mm (9.45 x 4.13 x 1.1 in.)
Weight
592g (20.9 oz.)
Certifications CE
FCC
