Περιγραφή

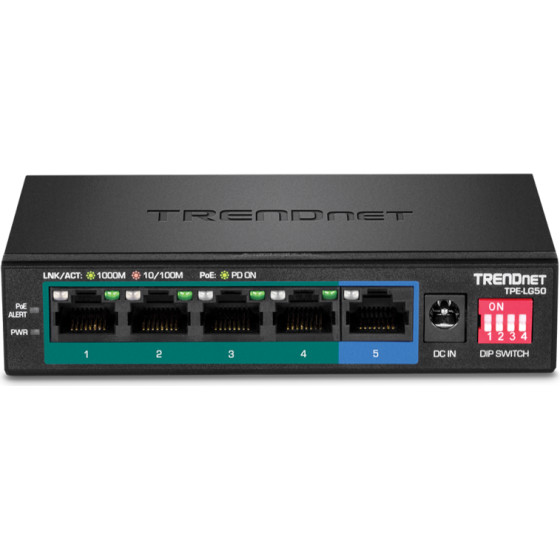

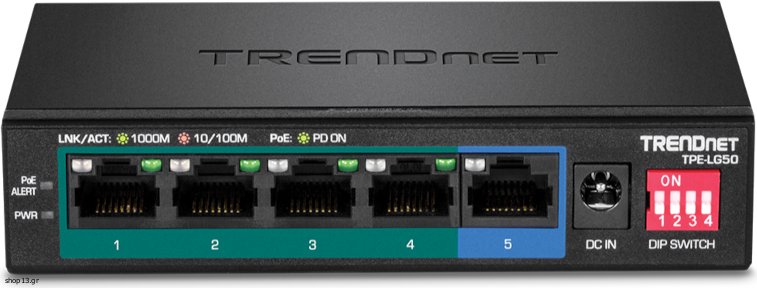

5-Port Gigabit Long Range PoE+ Switch
Easy installation
4 x Gigabit PoE+ ports and 1 x Gigabit port
Enable the DIP switch to extend PoE+ signal up to 200m (656 ft.) at 10Mbps
DIP switch supports VLAN port isolation and QoS
10Gbps switching capacity
32W PoE budget
Wall mountable design
Sturdy metal switch
Use with TRENDnet’s PoE splitter to network and power non-PoE devices
Specifications
Standards IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3p
IEEE 802.3af
IEEE 802.3at
Device Interface 4 x Gigabit PoE+ ports
1 x Gigabit port
DIP switch
LED indicators
Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
Performance Switch Fabric: 10Gbps
RAM Buffer: 128KB
MAC Address Table: 2K entries
Jumbo Frames: 9KB
Forwarding rate: 7.44Mpps (64-byte packet size)
Special Features Long range PoE+ up to 200m at 10Mbps
VLAN port isolation
802.1p Class of Service (CoS)
Wall mountable
DIP Switch
Switch
Status
Function
1
OFF
Ports 1 & 2: Default gigabit PoE+
ON
Ports 1 & 2: Long range PoE+ up to 200m at 10Mbps
2
OFF
Ports 3 & 4: Default gigabit PoE+
ON
Ports 3 & 4: Long range PoE+ up to 200m at 10Mbps
3
OFF
VLAN port isolation disabled
ON
VLAN port isolation on ports 1-4
4
OFF
QoS disabled
ON
QoS Enabled: Video & Voice - High Priority
Power Input: 100 - 240 V AC, 50/60Hz, 1.2A
Output: 54V DC, 0.7A external power adapter
Max. consumption: 36.3W
PoE PoE budget: 32W
PoE Mode A: Pins 1,2 for power and pins 3,6 for power
Operating Temperature
0° - 40 °C (32° - 104 °F)
Operating Humidity
Max. 90% non-condensing
Dimensions
121 x 75 x 26mm (4.76 x 2.95 x 1 in.)
Weight
246g (8.68 oz.)
Certifications CE
FCC
