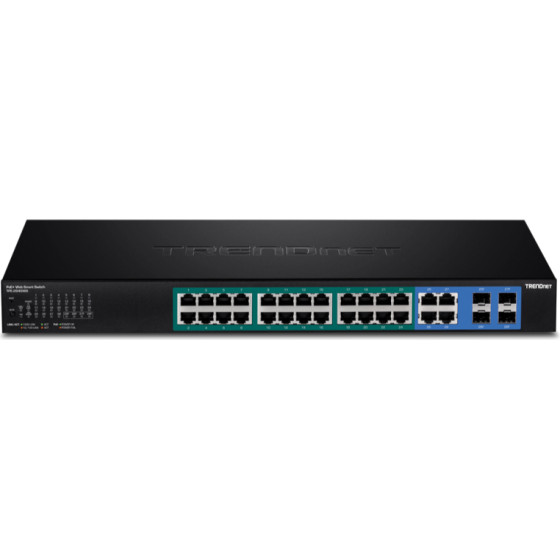

TRENDnet - (TPE-2840WS)
[Κωδικός : 464987]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Description
TRENDnet’s 28-Port Gigabit Web Smart PoE+ Switch, model TPE-2840WS, delivers advanced management features with a 56Gbps switching capacity. This rack mountable IPv6 ready switch comes with an intuitive web-based interface. Advanced traffic management controls, troubleshooting, and SNMP monitoring make this a powerful solution for SMB networks. The TPE-2840WS provides 24 gigabit PoE+ ports with a total power budget of 185W, and four shared gigabit ports (RJ-45 or SFP). The PoE+ standard supplies up to 30W of power per port for devices such as high power wireless access points, PTZ (Pan Tilt Zoom) Internet cameras, and VoIP telephony systems.
Features
o 24 x Gigabit PoE+ ports
o 4 x Shared Gigabit ports (RJ-45 or SFP)
o 185W PoE power budget
o Easy-to-use web-based management interface
o Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
o Bandwidth control per port
o Private and Voice VLAN support
o Smart Fan
o 56Gbps switching capacity
o IEEE 802.1p QoS with queue scheduling support
Specifications
Standards IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3az
Device Interface 24 x Gigabit PoE+ ports
4 x Shared Gigabit ports (RJ-45/SFP)
LED indicators
Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
Performance Switch fabric: 56Gbps
RAM buffer: 4.1Mbits
MAC Address Table: 8K entries
Jumbo Frames: 10Kbytes
HOL Blocking Prevention
Forwarding rate: 41.7Mpps (64-byte packet size)
Management HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP and LLDP-MED
Virtual Cable Diagnostics Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB IP FORWARD TABLE MIB RFC 1354
RMON MIB RFC 1271
IPV4 MIB RFC 1213
IPV6 MIB RFC 2465
GVRP MIB IEEE 802.1Q-VLAN
LA MIB IEEE 802.3ad
LLDP MIB IEEE 802.1AB
IGMP SNOOPING MIB RFC 2933
MLD SNOOPING MIB RFC 3019
PRIVATE VLAN MIB IEEE 802.1Q
DHCPSNOOP MIB RFC 2026
QOS MIB RFC 4323
SNMP MIB RFC 3415
STP MIB RFC 4318
PNAC MIB IEEE 802.1x
VLAN MIB IEEE 802.1q
DNS MIB RFC 1611
ACL MIB
BANDWIDTH CTRL MIB
LBD MIB
MIRROR MIB
IPV6 NEIGHBOR MIB
SNTP MIB
STORM CTRL MIB
STATISTICS MIB
Tool MIB
VOICE VLAN MIB
DOS MIB
Spanning Tree IEEE 802.1D STP (Spanning Tree protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation Static Link Aggregation
802.3ad Dynamic LACP
Quality of Service (QoS) 802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN Multiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs)
Multicast IGMP Snooping v1, v2, v3 (per VLAN)
Static Multicast Address
Up to 256 multicast entries
Port Mirror RX, TX, or Both
One to one
Encryption 802.1X Port-Based Network Access Control , RADIUS, TACACS+
Local Dial In User Authentication
DHCP Snooping (per VLAN)
Loopback Detection
Duplicated Address Detection
Trusted Host
Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6 MAC Address
VLAN ID
Ether Type (IPv4 only)
IP Protocol 0-255
TCP/UDP Port 1-65535
802.1p
DSCP (IPv4 only)
IPv6 Address (IPv6 only)
Compatibility
Optional Software Utility: Windows(R) 10, 8.1, 8, 7, Vista, XP, Windows(R) 2003/2008 Server
Special Features PoE+
IPv6
802.3az power saving
Rack mountable
PoE scheduling
Power Input: 100 - 240V AC, 50/60Hz, internal power supply
Consumption: 256W (max.)
Power Budget: 185W
Fan/Acoustics Quantity: 2
Noise Level: 52 dBA (max.)
MTBF
443,825 hours
Operating Temperature
-5 - 50°C (23 - 122°F)
Operating Humidity
Max. 95% non-condensing
Dimensions 440 x 250 x 44mm (17.3 x 9.8 x 1.74 in.)
Rack mountable 1U height
Weight
3.75kg (8.26 lbs.)
Certifications CE
FCC
UL
Warranty
3 year warranty
