Description

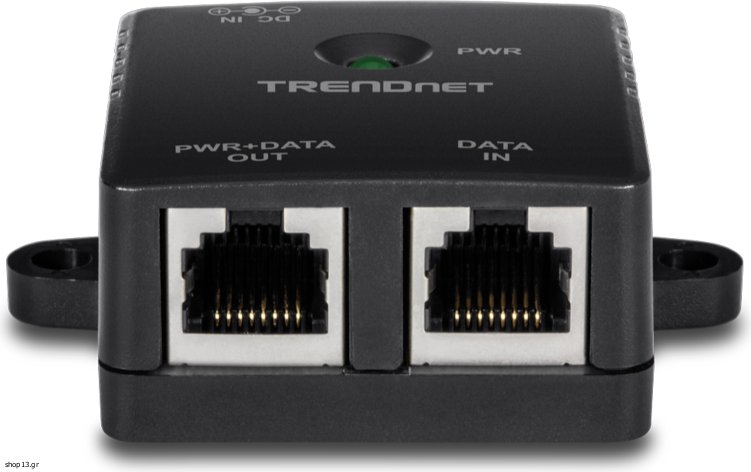

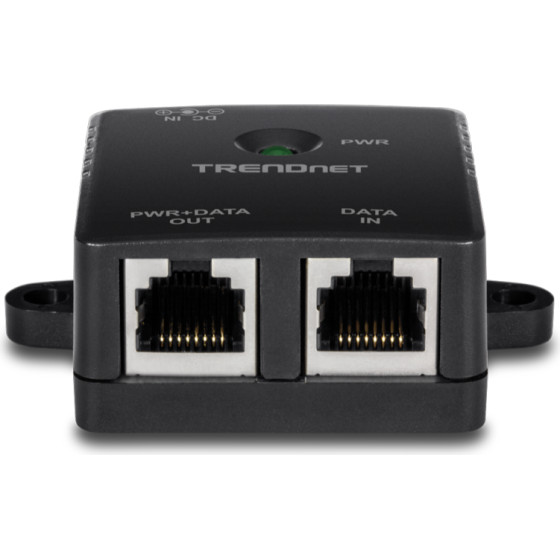

The Gigabit Power over Ethernet Injector, model TPE-113GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal.
Connect this device to a non-PoE switch and then run an Ethernet cable for up to 100 meters (328 Ft.) to network PoE devices.
No need to buy a PoE switch--use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations.
This compact device safeguards valuable network equipment with short circuit protection.
Quickly create an integrated PoE and non-PoE network at Gigabit speeds.
Specifications
Standards IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
Device Interface 1 x Gigabit Data In port
1 x Gigabit Data & Power out port
1 x Power Input
LED indicator
Special Features
Wall-mountable
Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
PoE Delivery
Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Power
Input: 100 - 240V AC, 50/60Hz, 0.6A max.
Power Consumption
Max. 15.4W
Operating Temperature
0° - 40° C (32° - 104° F)
Operating Humidity
Max. 90% non-condensing
Dimensions
67 x 51 x 25mm (2.6 x 2 x 1 in.)
Weight
38g (1.34 oz.)
Certifications CE
FCC
