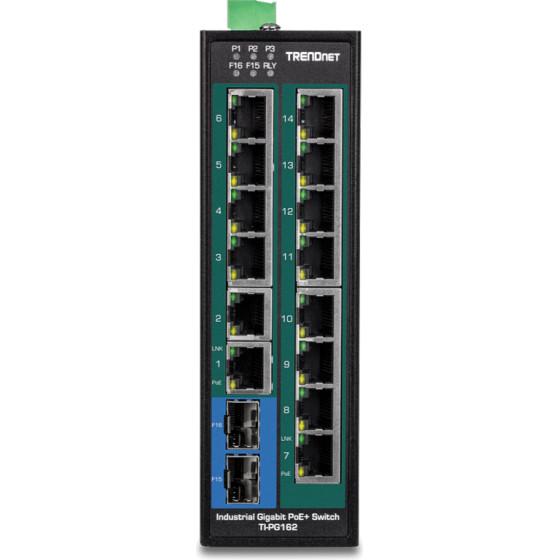

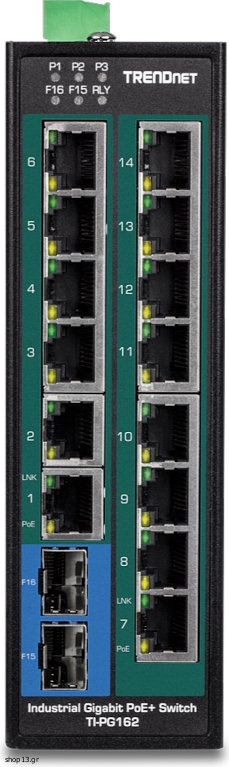

16-Port Industrial Gigabit PoE+ DIN-Rail Switch
TRENDnet’s Industrial Gigabit PoE+ DIN-Rail Switches provide network connectivity in rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The Industrial Gigabit PoE+ DIN-Rail Switches each feature a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Our hardened industrial PoE+ switch models feature copper Gigabit PoE+ ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications.
14 x Gigabit PoE+ ports
2 x Gigabit SFP slots
240W PoE power budget
32Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-Rail mount and wall mount brackets
Wide operating temperature range of -40° - 75°C (-40° - 167°F)
Multiple inputs provide redundant power with overload current protection
Alarm output triggered by power failure
Power supply sold separately (model: TI-S48048)
Specifications
Standards IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3z
IEEE 802.3af
IEEE 802.3at
Device Interface 14 x Gigabit PoE+ ports
2 x Gigabit SFP slots
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
SFP: 2000Mbps (full duplex)
Performance Data RAM Buffer: 512KB
Switching Fabric: 32Gbps
MAC Address Table: 8K entries
Jumbo Frame: 9KB
Forwarding rate: 23.8Mpps (64-byte packet size)
Special Features Hardened components rated for extreme temperatures
Multiple redundant power inputs
ESD contact 6kV, air 8kV, and surge 2kV support
Low-profile design
DC Power Input: 48 - 56V DC
Recommended power supply: TI-S48048 (sold separately)
Max. consumption: 13W (no PoE)
Optional Power Adapter (48VDC3000 sold separately) Input: 100 - 240V AC, 50/60Hz, 2A
Output: 48V DC, 3.34A 160W max.
PoE
PoE budget: 240W
Terminal Block Multiple power inputs, alarm relay contact, 6 pin
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. - In / 0.5Nm / 0.56Nm
Wire strip length: 7-8mm
Alarm Relay Contact Relay outputs with current carrying capacity of 1A, 24V DC
Open circuit mode when two power sources are connected
Short circuit mode when only one power source is connected
MTBF 504,738hrs @ 50° C
222,000hrs @ 75° C
Housing IP30 metal case
DIN-rail mount
Wall mount
Grounding point
6kV contact protection
8kV air protection
2kV surge protection
Operating Temperature
- 40° - 75° C (-40° - 167° F)
Operating Humidity
Max. 95% non-condensing
Dimensions (L x W x H)
155 x 120 x 48mm (6 x 4.7 x 1.9 in.)
Weight
562g (19.8 oz.)
Certifications CE
FCC
MET
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
