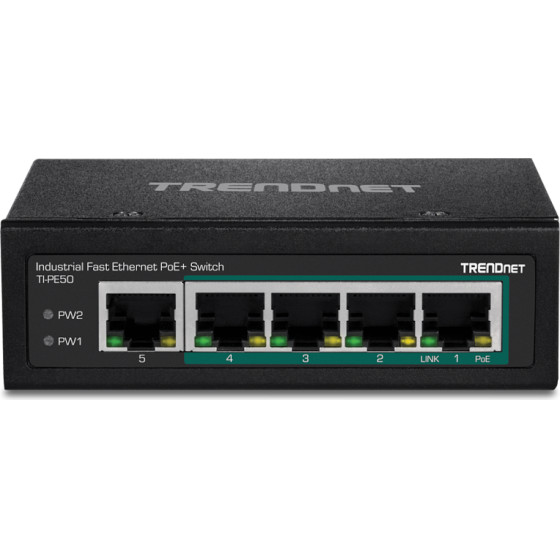

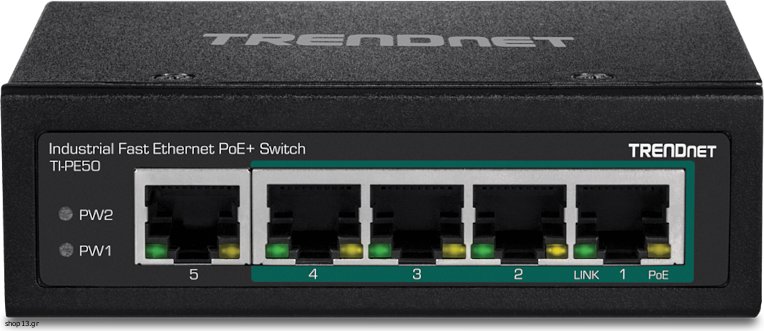

TRENDnet - (TI-PE50)

5-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch
TRENDnet’s Industrial Fast Ethernet PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial unmanaged PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime.
4 x Fast Ethernet PoE+ ports
1 x Fast Ethernet port
90W PoE power budget
1Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-Rail mount and wall mount brackets
Wide operating temperature range of -40° - 75°C (-40° - 167°F)
Dual inputs provide redundant power with overload current protection
Power supply sold separately (model: TI-S12048)
Specifications

Standards
IEEE 802.3


IEEE 802.3u


IEEE 802.3x


IEEE 802.3af


IEEE 802.3at


Device Interface 4 x 10/100Mbps PoE+ ports


1 x 10/100Mbps port


4-pin removable terminal block


LED indicators


DIN-Rail mount


Wall mount


Grounding point


Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)


Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)


Performance Data RAM Buffer: 56KB


Switching Fabric: 1Gbps


MAC Address Table: 1K entries


Forwarding rate: 0.1488Mpps (64-byte packet size)


Special Features Hardened components rated for extreme temperatures


Dual power inputs


Auto-Negotiation


Auto store and forward architecture


Automatic address learning and address aging


ESD 8KV and Surge 2KV protection


Power Input: 48 - 56 V DC


Compatible power supply: TI-S12048 (sold separately)


Max. consumption: 2.24W


Terminal Block Redundant power inputs, 4 pin


Wire range: 0.34mm^2 to 2.5mm^2


Solid wire (AWG): 12-24/14-22


Stranded wire (AWG): 12-24/14-22


Torque: 5 lb. - In / 0.5Nm / 0.56 Nm


Wire strip length: 7-8mm


MTBF
708,903 hours


Housing IP30 metal case


DIN-rail mount


Wall mount


Grounding point


8KV ESD protection


2KV surge protection


Operating Temperature
- 40° - 75° C (-40° - 167° F)


Operating Humidity
Max. 95 % non-condensing


Dimensions (L x W x H)
103 x 82 x 31mm (4 x 3.2 x 1.2 in.)


Weight
160g (5.7 oz.)


Certifications CE


FCC


Shock (IEC 60068-2-27)


Freefall (IEC 60068-2-32)


Vibration (IEC 60068-2-6)
