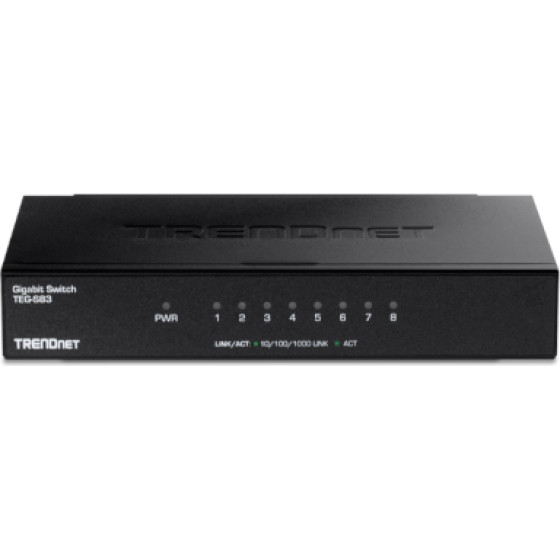

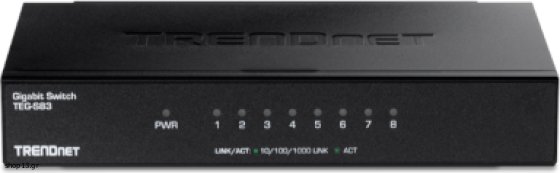

TRENDnet - (TEG-S83)

Description
The 8-Port Gigabit Desktop Switch, model TEG-S83, provides high-bandwidth performance, ease of use, and reliability. This gigabit switch boosts office network efficiency and eliminates network congestion. It features gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy metal gigabit switch for reliable high-speed network connectivity.
Specifications


Standards IEEE 802.3


IEEE 802.3u


IEEE 802.3x


IEEE 802.3ab


Device Interface 8 x Gigabit ports


LED indicators


Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)


Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)


Gigabit: 2000Mbps (full duplex)


Performance Switching Capacity: 16Gbps


RAM Buffer: 192KB


MAC Address Table: 4K entries


Forwarding Rate: 11.9Mpps (64-byte packet size)


Jumbo Frames: 9KB


Power Input: 100 - 240V AC, 50/60 Hz, 0.2A


Output: 5 V DC, 1A external power adapter


Max. Consumption: 3.2W


Fan/Acoustics
Fanless design


MTBF
1,451,740 hours


Operating Temperature
0° - 40° C (32° - 104° F)


Operating Humidity
Max. 90% non-condensing


Dimensions (L x W x H)
160 x 25 x 109mm (6.29 x 0.98 x 4.29 in.)


Weight
414g (14.6 oz.)


Certifications FCC


CE
