Description

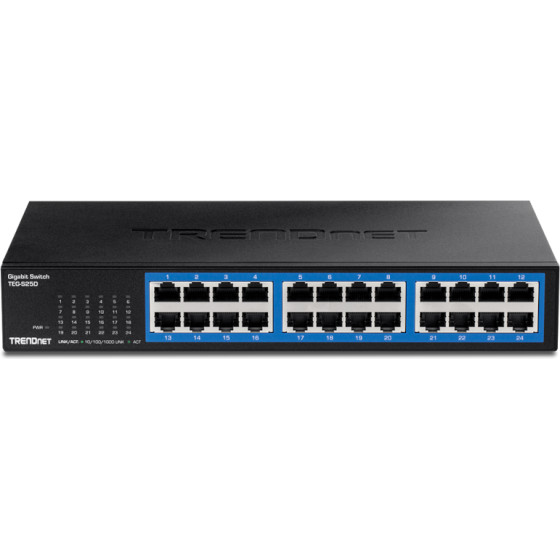

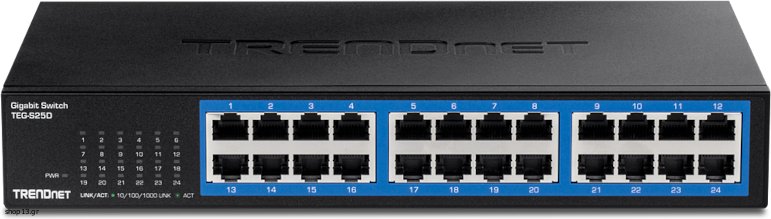

The 24-Port Gigabit Desktop Switch, model TEG-S25D, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 48Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
Features
24 x Gigabit RJ-45 ports
Sturdy metal desktop switch
Built-in power supply
48Gbps forwarding capacity
Fanless design
1U rackmount brackets included
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*
Specifications
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
Device Interface
24x Gigabit ports
LED indicators
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Performance
Switching Capacity: 48Gbps
RAM Buffer: 512KB
MAC Address Table: 8K entries
Forwarding Rate: 35.71Mpps (64-byte packet size)
Jumbo Frames: 9KB
Special Features
Rack Mountable
Power
Internal power supply: 100 - 240V AC, 50/60 Hz, 1A
Max. Consumption: 14.24W
Fan/Acoustics
Fanless design
MTBF
364,460 hours
Operating Temperature
0° - 40° C (32° - 104° F)
Operating Humidity
Max. 90% non-condensing
Dimensions (L x W x H)
267 x 162 x 42mm (10.51 x 6.38 x 1.65 in.)
Weight
1.3kg (2.93 lbs.)
Certifications
FCC
CE
ETL
Warranty
Lifetime Warranty*
