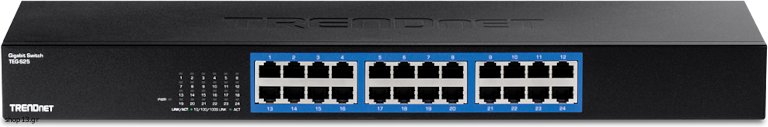

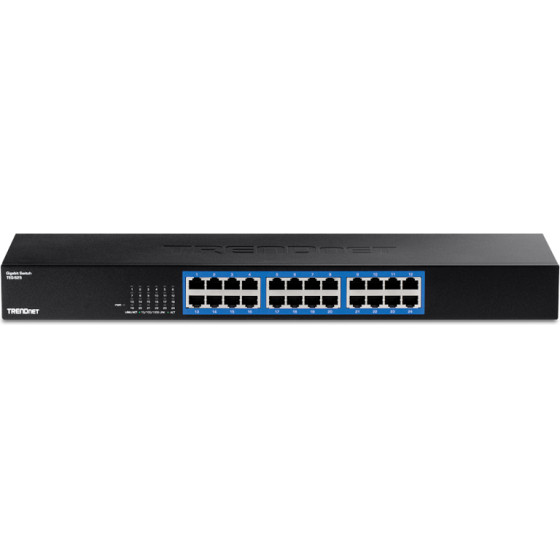

TRENDnet - (TEG-S25)

Features
o 24 x Gigabit RJ-45 ports

o Sturdy metal switch

o Built-in power supply

o 48Gbps forwarding capacity

o Fanless design

o 1U 19" rackmount brackets included
Specifications


Standards
IEEE 802.3


IEEE 802.3u


IEEE 802.3x


IEEE 802.3ab


Device Interface
24x Gigabit ports


LED indicators


Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)


Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)


Gigabit: 2000Mbps (full duplex)


Performance
Switching Capacity: 48Gbps


RAM Buffer: 512KB


MAC Address Table: 8K entries


Forwarding Rate: 35.71Mpps (64-byte packet size)


Jumbo Frames: 9KB


Special Features
Rack Mountable


Power
Internal power supply: 100 - 240V AC, 50/60 Hz, 1A


Max. Consumption: 14.24W


Fan/Acoustics
Fanless design


MTBF
364,460 hours


Operating Temperature
0° - 40° C (32° - 104° F)


Operating Humidity
Max. 90% non-condensing


Dimensions (L x W x H)
440 x 130 x 44mm (17.32 x 5.12 x 1.73 in.)


Weight
1.73kg (3.81 lbs.)


Certifications
FCC


CE


ETL
