Description

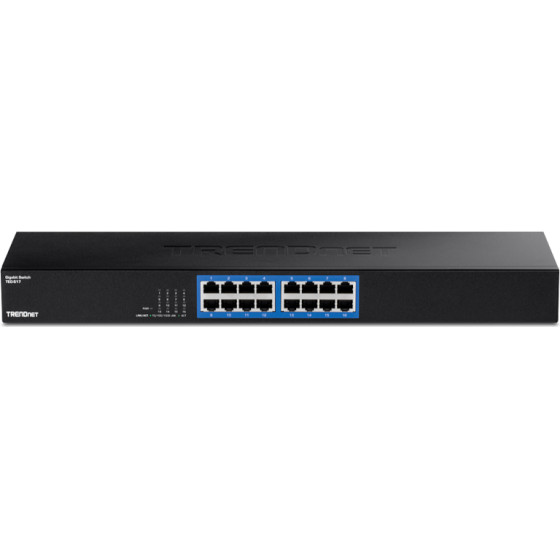

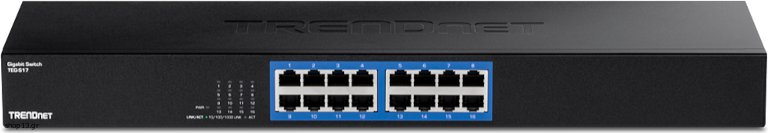

The 16-Port Gigabit Switch, model TEG-S17, provides high-bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
Specifications
Standards IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
Device Interface 16x Gigabit ports
LED indicators
Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Performance Switching Capacity: 32Gbps
RAM Buffer: 512KB
MAC Address Table: 8K entries
Forwarding Rate: 23.8Mpps (64-byte packet size)
Jumbo Frames: 9KB
Special Features
Rack Mountable
Power Internal power supply: 100 - 240V AC, 50/60 Hz, 0.2A
Max. Consumption: 9.19W
Fan/Acoustics
Fanless design
MTBF
1,121,721 hours
Operating Temperature
0° - 40° C (32° - 104° F)
Operating Humidity
Max. 90% non-condensing
Dimensions (L x W x H)
160 x 25 x 109mm (6.29 x 0.98 x 4.29 in.)
Weight
1.63kg (3.59 lbs.)
Certifications FCC
CE
ETL
