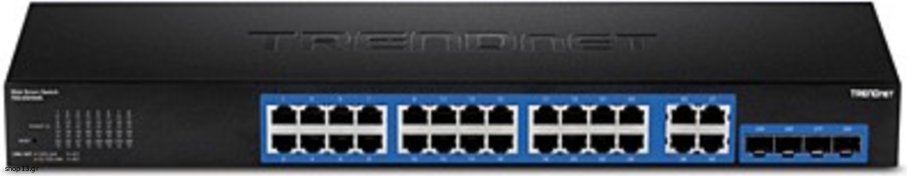

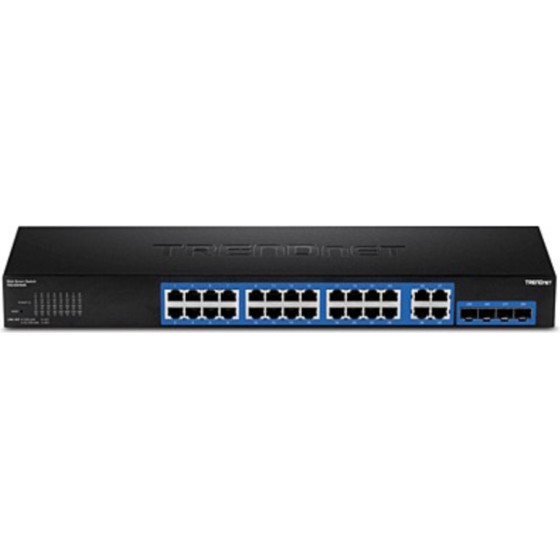

TRENDnet - (TEG-284WS)
[Κωδικός : 464942]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Specifications
TRENDnet’s 28-Port Gigabit Web Smart Switch, model TEG-284WS, is a cost-effective switch solution for high-speed gigabit applications.
Advanced traffic management, access management controls, trouble shooting, and monitoring protocol support makes this a powerful backbone solution for SMB networks.
The web-based management interface offers features for traffic control, troubleshooting, access controls, and monitoring.
Web Smart Management Provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.
Main Features
Total Number of Network Ports: 28
Modular Port/Expansion Slot
Details: 28 x Gigabit Ethernet Network, 4 x Gigabit Ethernet Expansion Slot Media Type Supported: Optical Fiber, Twisted Pair Ethernet Technology: Gigabit Ethernet Network Technology: 10/100/1000Base-T, 1000Base-X Number of Total Expansion Slots:
Expansion Slot Type: SFP Shared SFP Slot
Number of SFP Slots: 4
Layer Supported: 2
Manageable Power Source: Power Supply
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Specifications
Standards IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3az
Device Interface 24 x Gigabit ports
4 x shared Gigabit ports (RJ-45/SFP)
LED indicators
Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
Performance Switch fabric: 56 Gbps
RAM buffer: 512KB
MAC Address Table: 8K entries
Jumbo Frames: 10KB
HOL Blocking Prevention
Forwarding rate: 41.7Mpps (64-byte packet size)
Management HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP and LLDP-MED
Virtual Cable Diagnostics Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB IP FORWARD TABLE MIB RFC 1354
RMON MIB RFC 1271
IPV4 MIB RFC 1213
IPV6 MIB RFC 2465
GVRP MIB IEEE 802.1Q-VLAN
LA MIB IEEE 802.3ad
LLDP MIB IEEE 802.1AB
IGMP SNOOPING MIB RFC 2933
MLD SNOOPING MIB RFC 3019
PRIVATE VLAN MIB IEEE 802.1Q
DHCPSNOOP MIB RFC 2026
QOS MIB RFC 4323
SNMP MIB RFC 3415
STP MIB RFC 4318
PNAC MIB IEEE 802.1x
VLAN MIB IEEE 802.1q
DNS MIB RFC 1611
ACL MIB
BANDWIDTH CTRL MIB
LBD MIB
MIRROR MIB
IPV6 NEIGHBOR MIB
SNTP MIB
STORM CTRL MIB
STATISTICS MIB
Tool MIB
VOICE VLAN MIB
DOS MIB
Spanning Tree IEEE 802.1D STP (Spanning Tree protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation Static Link Aggregation
802.3ad Dynamic LACP
Quality of Service (QoS) 802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN Multiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs)
Multicast IGMP Snooping v1, v2, v3 (per VLAN)
Static Multicast Address
Up to 256 multicast entries
Port Mirror RX, TX, or Both
One to one
Encryption 802.1X Port-Based Network Access Control , RADIUS, TACACS+
Local Dial In User Authentication
DHCP Snooping (per VLAN)
Loopback Detection
Duplicated Address Detection
Trusted Host
Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6 MAC Address
VLAN ID
Ether Type (IPv4 only)
IP Protocol 0-255
TCP/UDP Port 1-65535
802.1p
DSCP (IPv4 only)
IPv6 Address (IPv6 only)
Compatibility
Optional Software Utility: Windows(R) 10, 8.1, 8, 7, Vista, XP, Windows(R) 2003/2008 Server
Special Features Fanless Design
IPv6
802.3az power saving
Rack mountable
Power Input: 100 - 240 V AC, 50/60 Hz, internal power supply
Consumption: 17.3 Watts (max.)
MTBF
787,004 hours
Operating Temperature
-5 - 50°C (23 - 122°F)
Operating Humidity
Max. 95% non-condensing
Dimensions 440 x 140 x 44mm (17.4 x 5.51 x 1.74 in.)
Rack mountable 1U height
Weight
2.15kg (4.73 lbs.)
Certifications CE
FCC
UL
TRENDnet’s 28-Port Gigabit Web Smart Switch, model TEG-284WS, is a cost-effective switch solution for high-speed gigabit applications.
Advanced traffic management, access management controls, trouble shooting, and monitoring protocol support makes this a powerful backbone solution for SMB networks.
The web-based management interface offers features for traffic control, troubleshooting, access controls, and monitoring.
Web Smart Management Provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.
Main Features
Total Number of Network Ports: 28
Modular Port/Expansion Slot
Details: 28 x Gigabit Ethernet Network, 4 x Gigabit Ethernet Expansion Slot Media Type Supported: Optical Fiber, Twisted Pair Ethernet Technology: Gigabit Ethernet Network Technology: 10/100/1000Base-T, 1000Base-X Number of Total Expansion Slots:
Expansion Slot Type: SFP Shared SFP Slot
Number of SFP Slots: 4
Layer Supported: 2
Manageable Power Source: Power Supply
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Specifications
Standards IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3az
Device Interface 24 x Gigabit ports
4 x shared Gigabit ports (RJ-45/SFP)
LED indicators
Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
Performance Switch fabric: 56 Gbps
RAM buffer: 512KB
MAC Address Table: 8K entries
Jumbo Frames: 10KB
HOL Blocking Prevention
Forwarding rate: 41.7Mpps (64-byte packet size)
Management HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP and LLDP-MED
Virtual Cable Diagnostics Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB IP FORWARD TABLE MIB RFC 1354
RMON MIB RFC 1271
IPV4 MIB RFC 1213
IPV6 MIB RFC 2465
GVRP MIB IEEE 802.1Q-VLAN
LA MIB IEEE 802.3ad
LLDP MIB IEEE 802.1AB
IGMP SNOOPING MIB RFC 2933
MLD SNOOPING MIB RFC 3019
PRIVATE VLAN MIB IEEE 802.1Q
DHCPSNOOP MIB RFC 2026
QOS MIB RFC 4323
SNMP MIB RFC 3415
STP MIB RFC 4318
PNAC MIB IEEE 802.1x
VLAN MIB IEEE 802.1q
DNS MIB RFC 1611
ACL MIB
BANDWIDTH CTRL MIB
LBD MIB
MIRROR MIB
IPV6 NEIGHBOR MIB
SNTP MIB
STORM CTRL MIB
STATISTICS MIB
Tool MIB
VOICE VLAN MIB
DOS MIB
Spanning Tree IEEE 802.1D STP (Spanning Tree protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation Static Link Aggregation
802.3ad Dynamic LACP
Quality of Service (QoS) 802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN Multiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs)
Multicast IGMP Snooping v1, v2, v3 (per VLAN)
Static Multicast Address
Up to 256 multicast entries
Port Mirror RX, TX, or Both
One to one
Encryption 802.1X Port-Based Network Access Control , RADIUS, TACACS+
Local Dial In User Authentication
DHCP Snooping (per VLAN)
Loopback Detection
Duplicated Address Detection
Trusted Host
Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6 MAC Address
VLAN ID
Ether Type (IPv4 only)
IP Protocol 0-255
TCP/UDP Port 1-65535
802.1p
DSCP (IPv4 only)
IPv6 Address (IPv6 only)
Compatibility
Optional Software Utility: Windows(R) 10, 8.1, 8, 7, Vista, XP, Windows(R) 2003/2008 Server
Special Features Fanless Design
IPv6
802.3az power saving
Rack mountable
Power Input: 100 - 240 V AC, 50/60 Hz, internal power supply
Consumption: 17.3 Watts (max.)
MTBF
787,004 hours
Operating Temperature
-5 - 50°C (23 - 122°F)
Operating Humidity
Max. 95% non-condensing
Dimensions 440 x 140 x 44mm (17.4 x 5.51 x 1.74 in.)
Rack mountable 1U height
Weight
2.15kg (4.73 lbs.)
Certifications CE
FCC
UL
