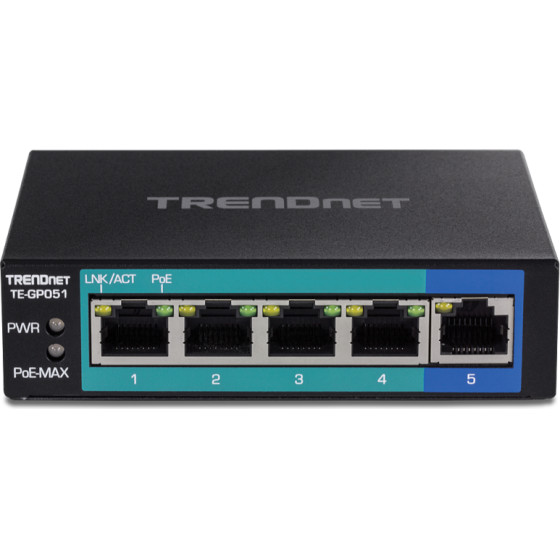

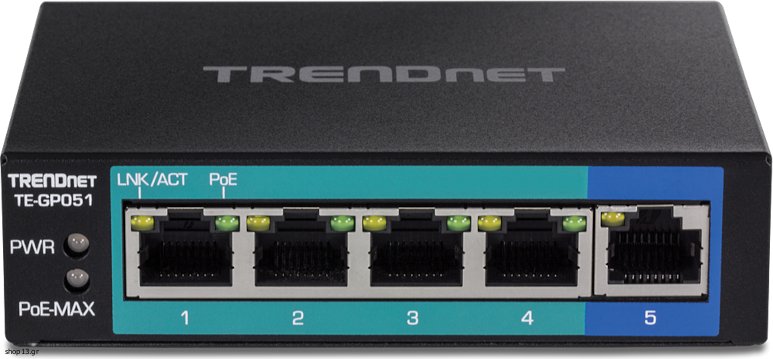

TRENDnet - (TE-GP051)

Description
4 x Gigabit PoE+ ports
1 x Gigabit port
10Gbps switching capacity
35W PoE power budget
Reduces equipment cost by delivering data and power over existing network cables
Compact wall-mountable metal housing
Fanless design
Specifications

Standards IEEE 802.3


IEEE 802.3u


IEEE 802.3x


IEEE 802.3z


IEEE 802.3ab


IEEE 802.3af


IEEE 802.3at


Device Interface 4 x Gigabit PoE+ ports


1 x Gigabit port


LED indicators


Wall mountable


Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)


Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)


Gigabit: 2000Mbps (full duplex)


Performance Data RAM Buffer: 125KB


Switch Fabric: 10Gbps


MAC Address Table: 2K entries


Forwarding rate: 7.44Mpps (64-byte packet size)


Jumbo Frame: 9KB


Power Input: 100 - 240V AC, 50/60Hz


Output: 48V DC, 0.8A external power adapter


Max. consumption: 3W (no PD)


PoE PoE budget: 35W


PoE Mode A: Pins 1, 2, 3, and 6 for power


Over current protection


Short circuit protection


MTBF
612,220 hours


Operating Temperature
-10° - 55° C (14° - 131° F)


Operating Humidity
Max. 95% non-condensing


Dimensions
105 x 83 x 28mm (4.1 x 3.3 x 1.1 in.)


Weight
0.3kg (0.77 lbs.)


Certifications CE


FCC


UL
