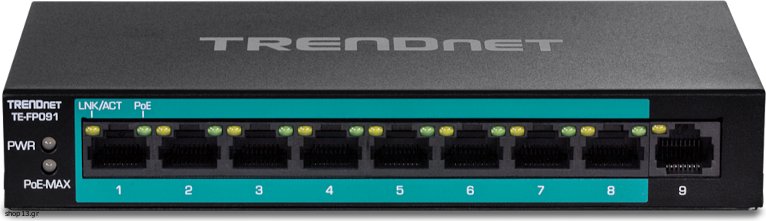

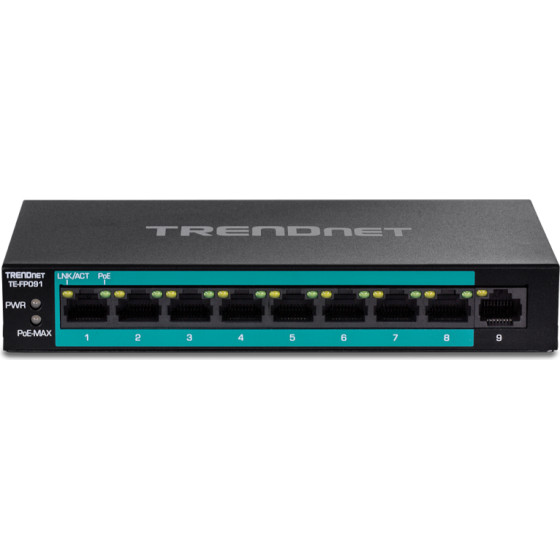

TRENDnet - (TE-FP091)

Features
Easy installation
8 x Fast Ethernet PoE+ ports and 1 x Fast Ethernet port
Enable DIP switch to extend PoE+ signal up to 250m (820ft.) at 10Mbps
60W PoE power budget
1.8Gbps switching capacity
Wall mountable design
Sturdy metal switch
Use with TRENDnet’s PoE splitter to network and power non-PoE devices
Specifications

Standards
IEEE 802.3


IEEE 802.3u


IEEE 802.3x


IEEE 802.3af


IEEE 802.3at


Device Interface
8 x Fast Ethernet PoE+ ports


1 x Fast Ethernet port


DIP Switch


LED indicators


Wall mountable


Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)


Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)


Performance
Data RAM Buffer: 125KB


Switch Fabric: 1.8Gbps


MAC Address Table: 2K entries


Forwarding rate: 1.488Mpps (64-byte packet size)


Power
Input: 100 - 240V AC, 50/60Hz


Output: 48V DC, 1.35A external power adapter


Max. consumption: 4.8W (no PD)


PoE
PoE budget: 60W


Over current protection


Short circuit protection


MTBF
612,220 hours


Operating Temperature
0° - 40° C (32° - 104° F)


Operating Humidity
Max. 95% non-condensing


Dimensions
170 x 93 x 28mm (6.7 x 3.7 x 1.1 in.)


Weight
0.35kg (0.77 lbs.)


Certifications
CE


FCC
