TRENDnet - (TE-FP051)

Description

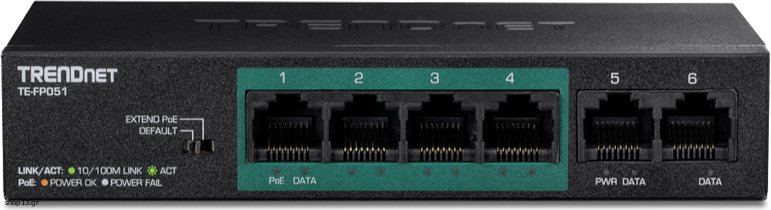

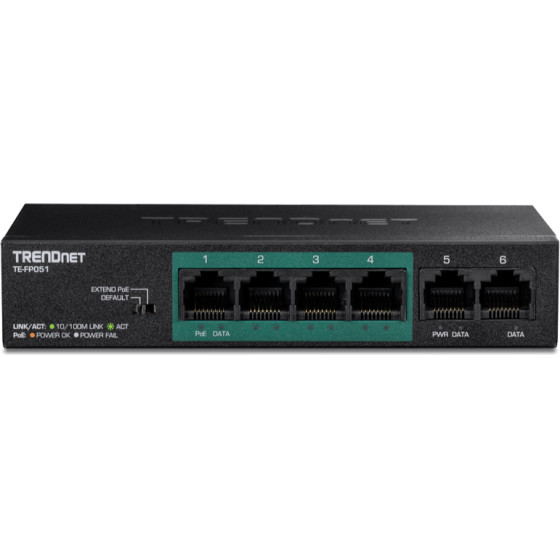

The 6-Port Unmanaged Fast Ethernet Long Range PoE+ Switch, model TE-FP051, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices, such as access points, VoIP phones, and IP cameras. It supports both PoE (802.3af) and PoE+ (802.3at) devices with a 60W PoE budget. This Unmanaged Fast Ethernet Long Range PoE+ Switch works up to 250m (820 ft.) away for longer distance PoE applications. It features a fanless design, and has a convenient option for wall-mounting.
Features
Easy installation
4 x Fast Ethernet PoE+ ports and 2 x Fast Ethernet ports
Enable the DIP switch to extend the PoE+ signal up to 250m (820ft.) at 10Mbps
1.2Gbps switching capacity
60W PoE budget
Wall mountable design
Sturdy metal switch
Use with TRENDnet’s PoE splitter to network and power non-PoE devices
3-year warranty
Specifications


Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at


Device Interface
4 x Fast Ethernet PoE+ ports
2 x Fast Ethernet port
DIP Switch
LED indicators
Wall mountable


Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)


Performance
Data RAM Buffer: 448Kbits
Switch Fabric: 1Gbps
MAC Address Table: 1K entries
Jumbo Frame: 15KB
Forwarding rate: 0.89Mpps (64-byte packet size)


AC Power
Input: 100 - 240V AC, 50/60Hz, 1.5A, internal power supply
Max. consumption: 1.5W (no PD)


PoE
PoE budget: 60W
Mode A: Pins 1, 2, 3, and 6 for power
Over current protection
Short circuit protection


MTBF
> 500,000 hours


Operating Temperature
0° - 40° C (32° - 104° F)


Operating Humidity
Max. 95% non-condensing


Dimensions
140 x 75 x 28mm (5.5 x 3 x 1.1 in.)


Weight
340g (12 oz.)


Certifications
CE
FCC


Warranty
3 year
