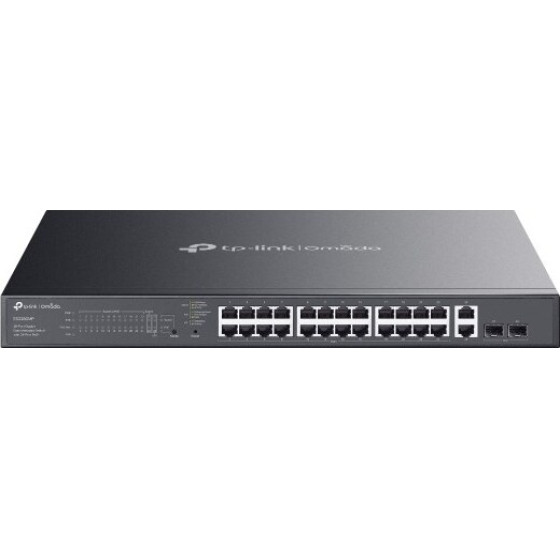

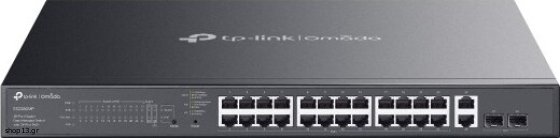

TP-LINK Omada network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black - (ES228GMP)

Design
Product colour: Black
LED indicators: Yes
Housing material: Metal
Number of fans: 2 fan(s)
Rack mounting: Yes

Power
Surge protection voltage: 6 kV
AC input frequency: 50/60 Hz
Surge protection: Yes
Power consumption (max): 454.8 W
Power source: AC
AC input voltage: 100 - 240 V
Power supply included: Yes

Security
IGMP snooping: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR)
DHCP features: DHCP client

Operational conditions
Heat dissipation: 1546.15 BTU/h
Operating temperature (T-T): -5 - 45 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Management features
Unified static configuration: Yes
Web-based management: Yes
Cloud-managed: Yes
Switch layer: L2
Switch type: Managed
Quality of Service (QoS) support: Yes

Weight & dimensions
Width: 440 mm
Height: 44 mm
Depth: 330 mm

Network
Fast leave: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Link aggregation: Yes
Port mirroring: Yes
Broadcast storm control: Yes
Flow control support: Yes
Networking standards: IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3z, IEEE 802.1ab, IEEE 802.3i
Number of VLANs: 32
Copper ethernet cabling technology: 10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
10G support: No
VLAN support: Yes
Auto MDI/MDI-X: Yes

Performance
Firmware upgradeable: Yes
Fanless: No
Mean time between failures (MTBF): 224143 h
Flash memory: 64 MB
Noise level: 46.2 dB

Packaging content
Rack mount kit: Yes
Manual: Yes
Quick start guide: Yes
Cables included: AC

Certificates
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE

Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 26
Basic switching RJ-45 Ethernet ports quantity: 26
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2

Data transmission
Forwarding rate: 41.66 Mpps
Jumbo frames: 15000
Store-and-forward: Yes
MAC address table: 8000 entries
Switching capacity: 56 Gbit/s
Packet buffer memory: 4 MB
Jumbo frames support: Yes

Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) type supported: PoE+
Total Power over Ethernet (PoE) budget: 384 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W

Multicast features
Multicast support: Yes


Warranty: warranty 60 months
