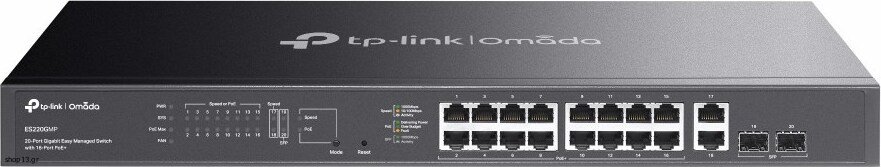

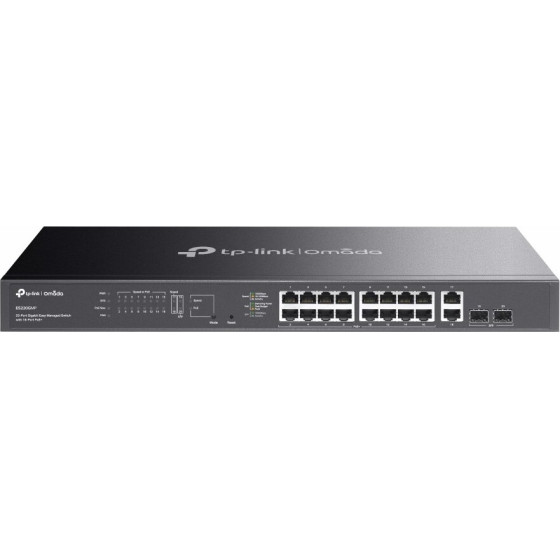

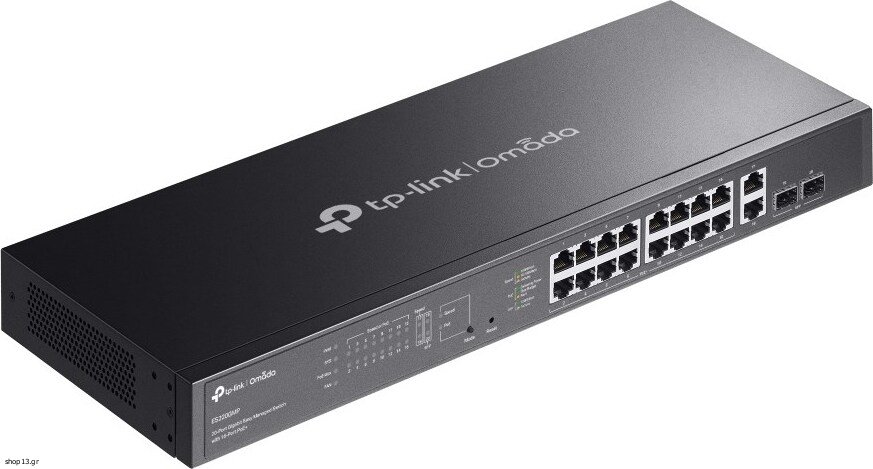

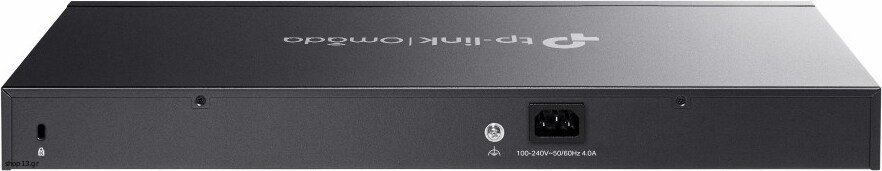

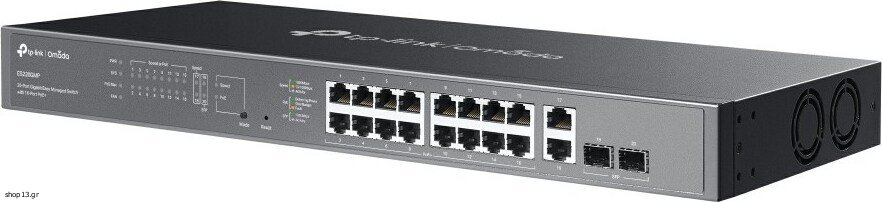

TP-LINK Omada network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black - (ES220GMP)

Design
Stackable: No
Rack mounting: Yes
Number of fans: 2 fan(s)
LED indicators: Yes
Product colour: Black

Power
Surge protection voltage: 6 kV
Power supply included: Yes
Surge protection: Yes
Power consumption (max): 289.7 W
AC input frequency: 50/60 Hz
Power source: AC
AC input voltage: 100 - 240 V

Security
Loop protection: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR)
DHCP features: DHCP client
IGMP snooping: Yes

Operational conditions
Heat dissipation: 984.88 BTU/h
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): -5 - 50 °C
Storage relative humidity (H-H): 5 - 90%

Management features
Unified static configuration: Yes
Switch type: Managed
Switch layer: L2
Cloud-managed: Yes
Quality of Service (QoS) support: Yes
Web-based management: Yes

Weight & dimensions
Depth: 180 mm
Height: 44 mm
Width: 440 mm

Network
Zero Touch Provisioning (ZTP): Yes
Flow control support: Yes
Virtual LAN features: Tagged VLAN, Port-based VLAN, MTU VLAN
Auto-negotiation: Yes
Port mirroring: Yes
10G support: No
Number of VLANs: 32
Link aggregation: Yes
VLAN support: Yes
Fast leave: Yes
Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1ab, IEEE 802.3u, IEEE 802.3i
Auto MDI/MDI-X: Yes

Performance
Mean time between failures (MTBF): 310550.7 h
Firmware upgradeable: Yes
Noise level: 41.5 dB
Flash memory: 64 MB

Packaging data
Package type: Box

Packaging content
Rack mount kit: Yes
Cables included: AC
User guide: Yes

Certificates
Compliance certificates: RoHS, CE, Federal Communications Commission (FCC)

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: AC-in jack
Basic switching RJ-45 Ethernet ports quantity: 18
SFP module slots quantity: 2
Gigabit Ethernet (copper) ports quantity: 18

Data transmission
Switching capacity: 40 Gbit/s
MAC address table: 8000 entries
Forwarding rate: 29.76 Mpps
Store-and-forward: Yes
Jumbo frames: 15000
Jumbo frames support: Yes
Packet buffer memory: 4 MB

Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 250 W
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE): Yes


Warranty: warranty 60 months
