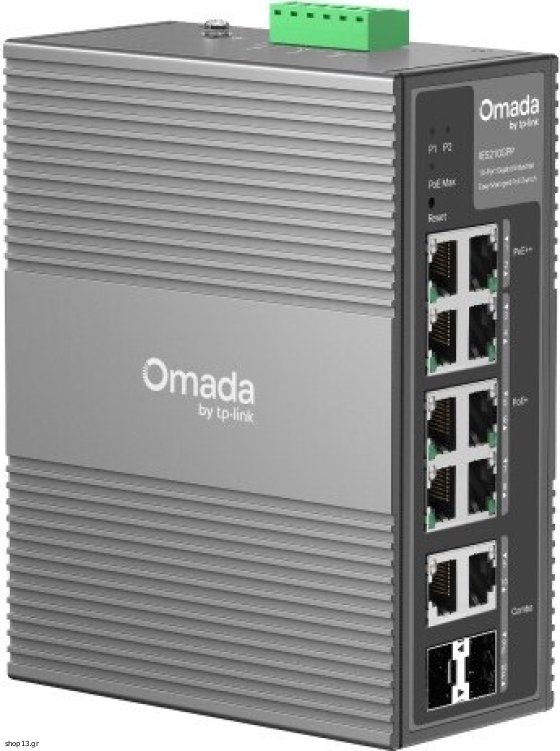

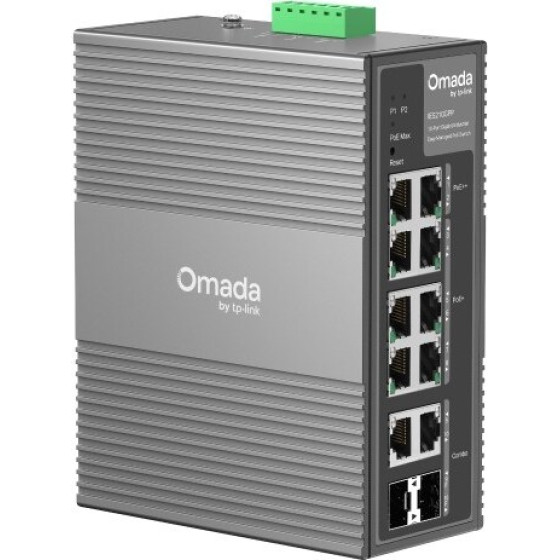

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch With 6-Port PoE+ And 2-Port PoE++ - (IES210GPP)

Design
Rack mounting: Yes
Form factor: DIN rail
LED indicators: Yes
Product colour: Grey

Power
DC input voltage: 12 - 57 V
Power source: DC

Security
IGMP snooping: Yes
Loop protection: Yes
DHCP features: DHCP client

Management features
Web-based management: Yes
Cloud-managed: Yes
Switch type: Managed
Quality of Service (QoS) support: Yes

Weight & dimensions
Width: 155 mm
Depth: 120 mm
Height: 60 mm

Network
Networking standards: IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at
Link aggregation: Yes
VLAN support: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Flow control support: Yes
Auto MDI/MDI-X: Yes
Port mirroring: Yes
Auto-negotiation: Yes
Broadcast storm control: Yes
10G support: No
Number of VLANs: 4000

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Combo SFP ports quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Data transmission
Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
Jumbo frames support: Yes
MAC address table: 8000 entries
Packet buffer memory: 4000 MB
Store-and-forward: Yes
Jumbo frames: 15000

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 240 W
Power over Ethernet plus (PoE+) ports quantity: 6
Power over Ethernet 4PPoE (PoE++) ports quantity: 2

Multicast features
Multicast support: Yes


Warranty: warranty 60 months
