Περιγραφή
Design
Reset button: Yes
Wall mountable: Yes
Product colour: Black
Power
Power source: DC
Input current: 2.43 A
DC input voltage: 53.5 V
Power supply included: Yes
Security
DHCP features: DHCP client
IGMP snooping: Yes
Operational conditions
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Management features
Switch type: Managed
Cloud-managed: Yes
Quality of Service (QoS) support: Yes
Weight & dimensions
Depth: 126 mm
Height: 26 mm
Width: 209 mm
Network
VLAN support: Yes
Flow control support: Yes
Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at, IEEE 802.1ab, IEEE 802.3af
Virtual LAN features: Port-based VLAN, MTU VLAN, Tagged VLAN
Auto MDI/MDI-X: Yes
Port mirroring: Yes
Link aggregation: Yes
Auto-negotiation: Yes
10G support: No
Performance
Fanless: Yes
Packaging data
Package type: Box
Packaging content
Cables included: AC
User guide: Yes
Certificates
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE

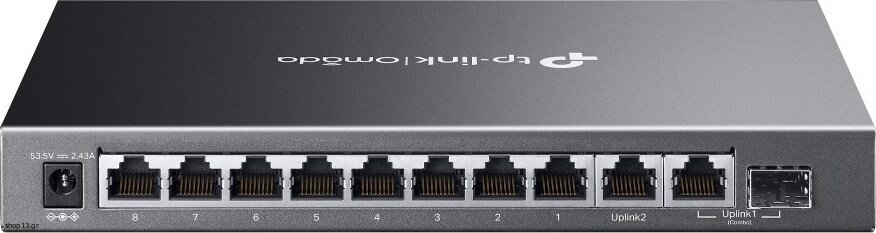

Ports & interfaces
Combo SFP ports quantity: 1
Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Data transmission
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 15
Forwarding rate: 14.88 Mpps
Switching capacity: 20 Gbit/s
Packet buffer memory: 4 MB
MAC address table: 8000 entries
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 123 W
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Optical fiber
Transmission distance (max): 0.25 km
Warranty: warranty 36 months
