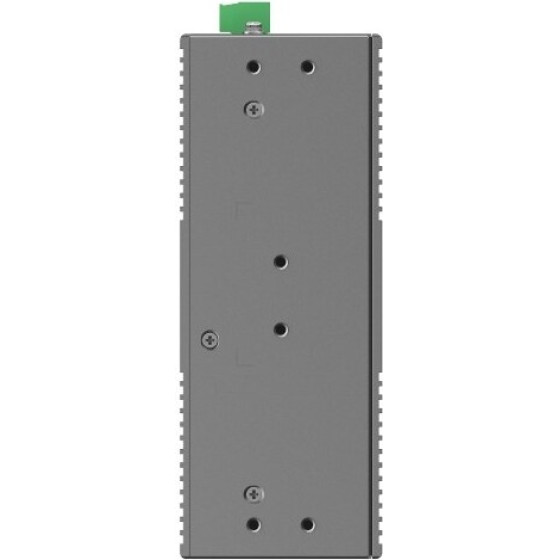

TP-Link Network Switch Managed Gigabit Ethernet (10/100/1000) Power Over Ethernet (PoE) Black - (IES206GPP)

Design
DIN rail mounting: Yes
Rack mounting: Yes
Wall mountable: Yes
Product colour: Black

Power
Redundant power supply (RPS) support: Yes
DC input voltage: 12 - 57 V
Power source: DC/PoE

Security
DHCP features: DHCP client
IGMP snooping: Yes

Operational conditions
Operating temperature (T-T): -40 - 75 °C
Storage relative humidity (H-H): 5 - 95%
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 85 °C

Management features
Switch type: Managed

Weight & dimensions
Depth: 120 mm
Width: 155 mm
Height: 60 mm

Network
Link aggregation: Yes
Networking standards: IEEE 802.1w, IEEE 802.3at, IEEE 802.3af, IEEE 802.1p, IEEE 802.3bt, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x
Spanning tree protocol: Yes
Broadcast storm control: Yes
Port mirroring: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
10G support: No
Flow control support: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance
Fanless: Yes

Packaging content
Quick start guide: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 4
SFP module slots quantity: 1
Combo SFP ports quantity: 1
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Data transmission
Forwarding rate: 8.93 Mpps
Switching capacity: 12 Gbit/s
Jumbo frames: 15000
Store-and-forward: Yes
Jumbo frames support: Yes
MAC address table: 8000 entries

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 120 W
Power over Ethernet plus (PoE+) ports quantity: 3
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity: 1

Multicast features
Multicast support: Yes


Warranty: warranty 60 months
