Περιγραφή
Design
Product colour: Black
LED indicators: Yes
Power
DC input voltage: 53.5 V
Power supply included: Yes
AC input frequency: 50 Hz
Power consumption (max): 71.61 W
Power source: DC/PoE
Input current: 1.31 A
AC input voltage: 220 V
Operational conditions
Heat dissipation: 243.47 BTU/h
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 40 °C
Management features
Switch type: Unmanaged
Quality of Service (QoS) support: Yes
Weight & dimensions
Width: 158 mm
Depth: 99 mm
Height: 25 mm
Network
Flow control support: Yes
10G support: No
Auto-negotiation: Yes
Cable types supported: Cat5, Cat5e, Cat3, Cat4
Auto MDI/MDI-X: Yes
Networking standards: IEEE 802.3at, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3i
Packaging data
Package type: Box
Packaging content
User guide: Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

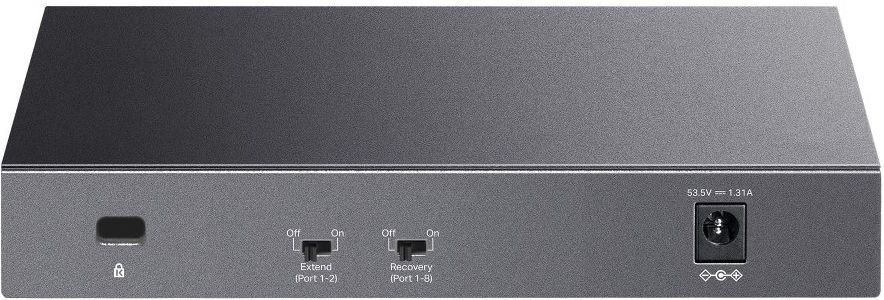

Power connector: DC-in jack
Basic switching RJ-45 Ethernet ports quantity: 8
Data transmission
MAC address table: 4000 entries
Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
Jumbo frames: 16000
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 62 W
Power over Ethernet (PoE) power per port: 30 W
Safety warning
Warnings: Ensure the unit is adequately ventilated during operation., Do not open the case or try to repair it yourself., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
Warranty: warranty 60 months
