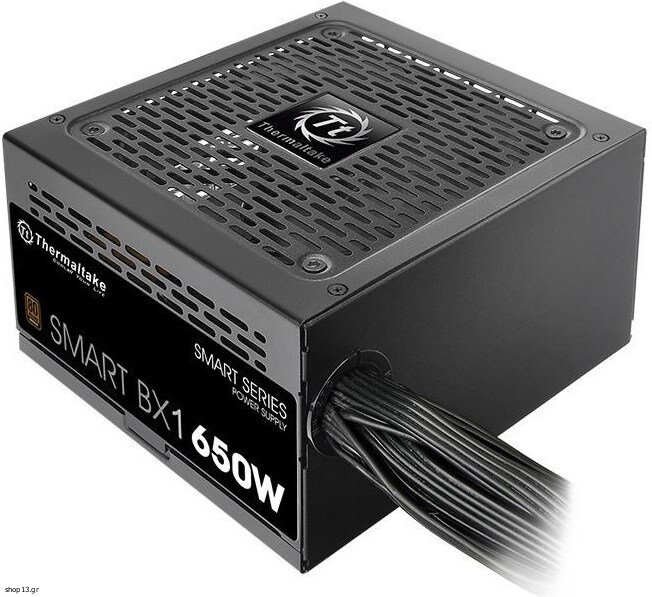

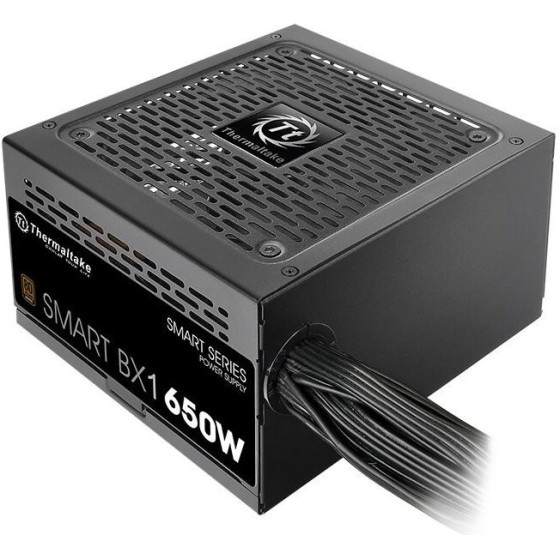

Thermaltake Smart BX1 power supply unit 650 W 24-pin ATX ATX Black - (PS-SPD-0650NNSABE-1)

Design
Product colour: Black
On/off switch: Yes
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Cooling type: Active

Power
Max output current (+5Vsb): 2.5 A
Total power: 650 W
Combined power (+5V): 110 W
Power Factor Correction (PFC) type: Active
Max output current (+12V): 48 A
Input current: 12 A
AC input frequency: 50 - 60 Hz
Combined power (-12V): 6 W
Combined power (+3.3V): 110 W
Combined power (+5Vsb): 12.5 W
Peak power: 80 W
Max output current (+3.3V): 23 A
Combined power (+12V): 576 W
AC input voltage: 100 - 240 V
Max output current (+5V): 17 A
Max output current (-12V): 0.5 A

Operational conditions
Operating relative humidity (H-H): 20 - 85%
Storage temperature (T-T): -40 - 55 °C
Operating temperature (T-T): 5 - 40 °C
Storage relative humidity (H-H): 10 - 95%

Weight & dimensions
Width: 150 mm
Height: 86 mm
Depth: 140 mm

Performance
EPS version: 2.92
ATX version: 2.3
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
Purpose: PC

Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA

Ports & interfaces
CPU power cable length: 1 mm
SATA power cable length: 150, 500 mm
Peripheral (Molex) power cable length: 500 mm, 150
PCI Express connector: Yes
Peripheral (Molex) power connectors (4-pin): 4
CPU power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 2
Cabling type: Non-Modular
Number of SATA power connectors: 6
Motherboard power connector: 24-pin ATX
PCI Express power cable length: 50 cm
Motherboard power cable length: 60 cm
