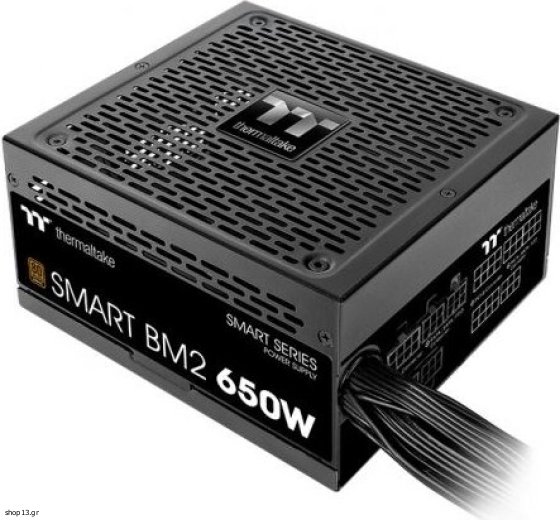

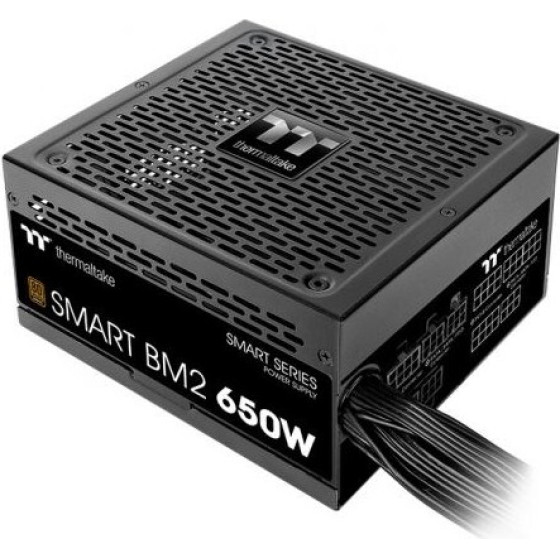

Thermaltake Smart BM2 650W - TT Premium Edition - (PS-SPD-0650MNFABE-1)

Design
Cooling type: Active
Fan diameter: 14 cm
Fan location: Top
Product colour: Black
On/off switch: Yes
Number of fans: 1 fan(s)
Fan speed: 0 - 2300 RPM

Power
Combined power (+12V): 648 W
Max output current (+3.3V): 20 A
AC input frequency: 47 - 63 Hz
Combined power (-12V): 3.6 W
Combined power (+3.3V): 110 W
Hold time: 12 ms
AC input voltage: 100 - 240 V
Power protection features: Over current, Over voltage
Power Factor Correction (PFC) type: Active
Max output current (+12V): 54 A
Total power: 650 W
Combined power (+5V): 110 W
Combined power (+5Vsb): 12.5 W
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Input current: 10 A
Max output current (+5Vsb): 2.5 A

Operational conditions
Operating relative humidity (H-H): 20 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions
Width: 150 mm
Depth: 160 mm
Height: 86 mm

Performance
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
Purpose: PC

Packaging content
Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Ports & interfaces
PCI Express power connectors (6+2 pin): 2
Motherboard power cable length: 60 cm
Cabling type: Semi-Modular
SATA power cable length: 150, 500 mm
Peripheral (Molex) power connectors (4-pin): 1
CPU power cable length: 60 cm
Number of SATA power connectors: 3
Motherboard power connector: 20+4 pin ATX
Floppy disk drive cable length: 15 cm
Peripheral (Molex) power cable length: 150, 500 mm
Floppy drive power connector: 1
PCI Express power cable length: 50 cm
CPU power connector (4+4 pin): Yes
