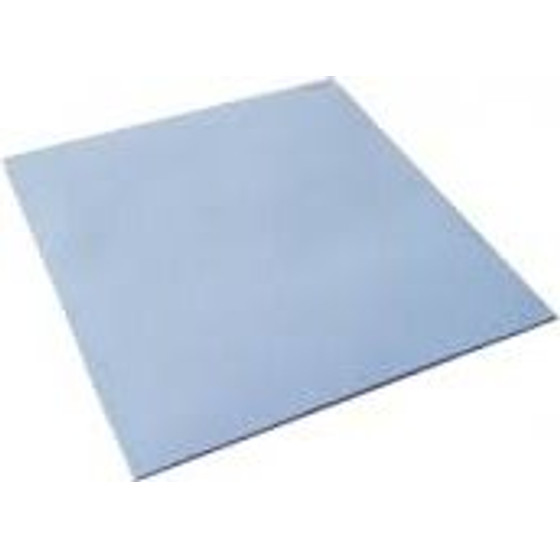

Thermal Pad TC550 - 15 x 15 x 1.5mm - 5.5 W/Mk OEM - (TC550-15x15x15)

Construction & Composition ---- Silicone & Ceramic filled ----
Color ---- Light Blue Visual
Thickness 1.5 mm
Hardness Shore C 25
Density g/cc 2.7
Tensile Strength KN/m 0.3
Elongation % 64%
Continuous Use Temp -40 to 150
Breakdown Voltage Kv/mm 5.0
Volume Impedance ohm-cm 1.1*1016
Dielectric Constant 1MHz 7.15
Weight Daminify ---- 0.3 @150 240H
Flame Rating ---- V-0 UL 94
Thermal Conductivity W/m.k 5.5
UL, RoHS, REACH ---- Compliance ----MANUFACTURER: OEM
TYPE: Thermal pad
TERMAL PAD SIZE: 15 x 15 mm
TERMAL PAD TICKNESS: 1.5 mm
THERMAL CONDUCTIVITY: 5.5 W/mK
DENSITY: 2.7 g/cm3
HARDNESS: Shore C 25
WORKING TEMP: -40° ~ 150°
COLOR: Blue
