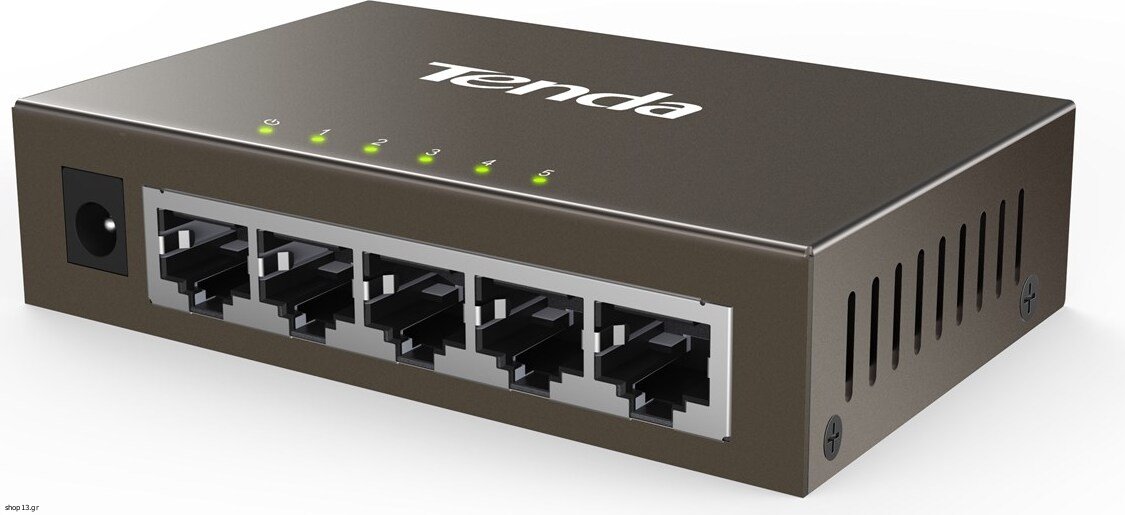

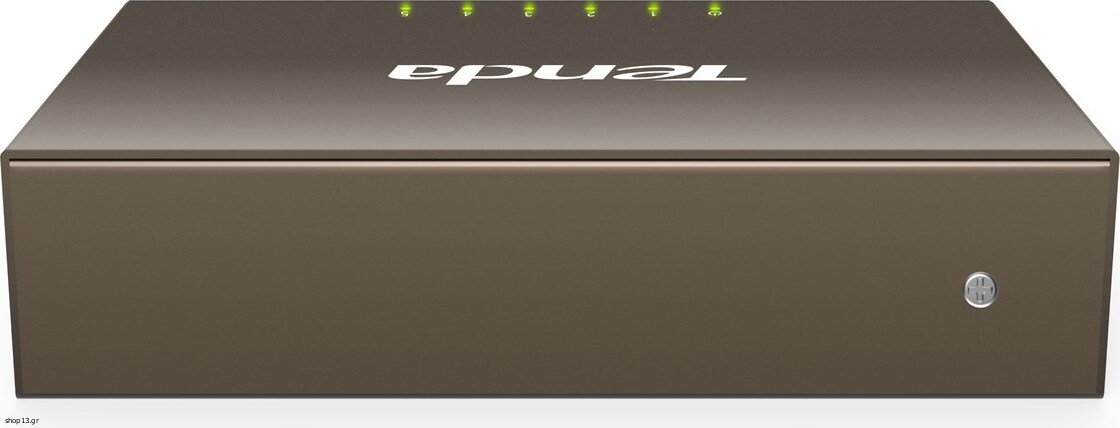

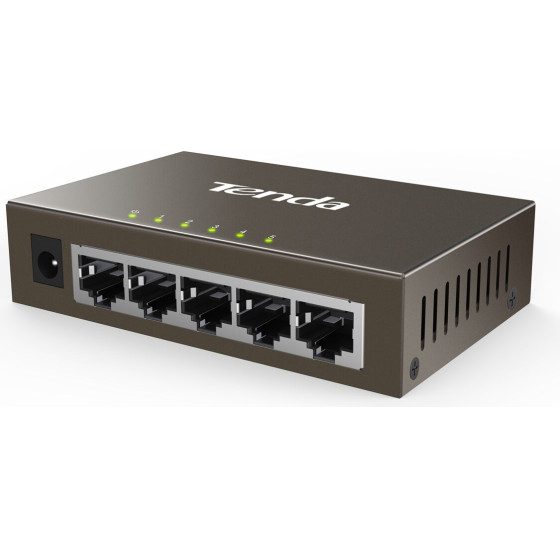

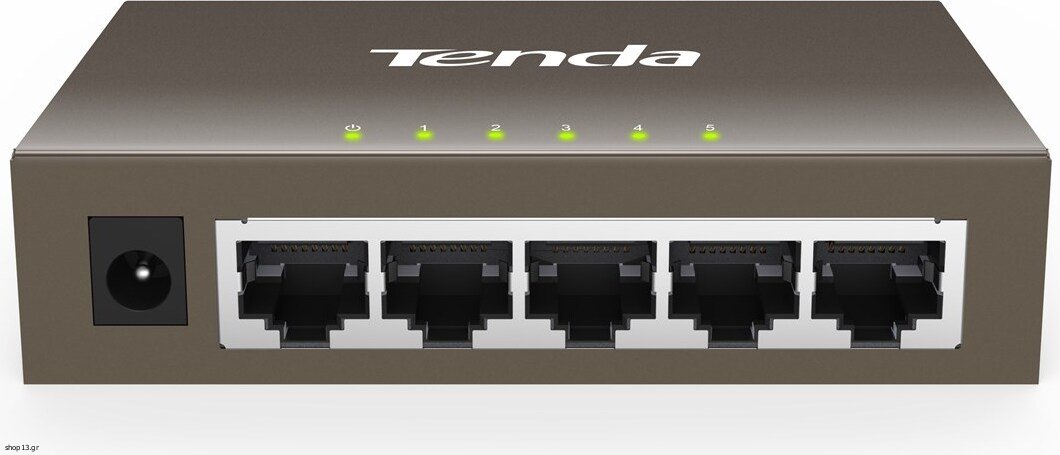

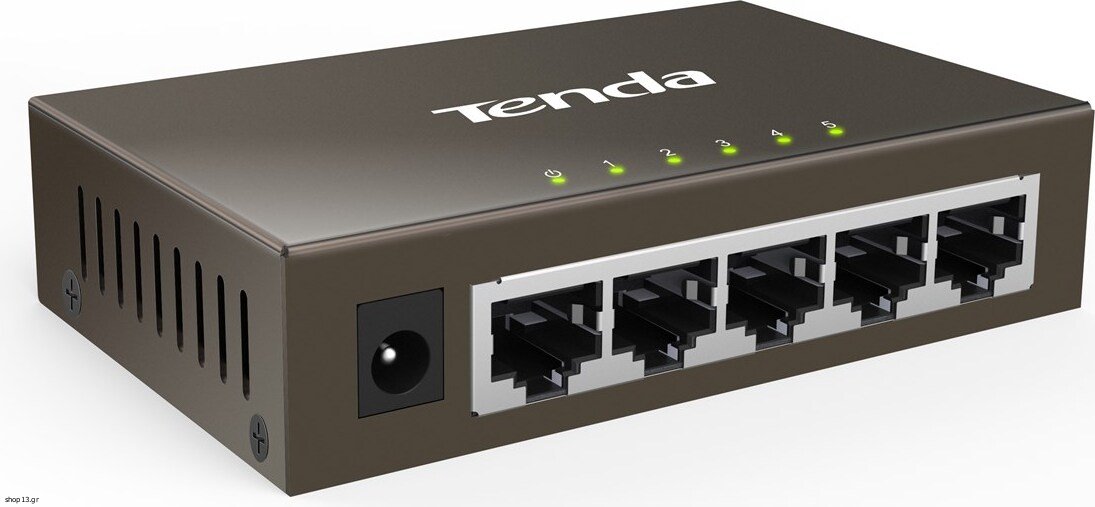

Tenda Network Switch Unmanaged Gigabit Ethernet (10/100/1000) Grey - (TEG1005D)

Design
Stackable: Yes
Rack mounting: No
Product colour: Grey

Power
Output current: 0.6 A
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Output voltage: 5 V
Surge protection voltage: 6 kV
Power consumption (typical): 2.5 W

Security
Access Control List (ACL): Yes

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -10 - 45 °C

Management features
Switch type: Unmanaged

Weight & dimensions
Width: 100 mm
Depth: 64 mm
Height: 25 mm

Network
10G support: No
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3u
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 100BASE-TX, 100BASE-T
Cable types supported: Cat5, Cat5e
MAC address auto-learning supported: Yes

Performance
Plug and Play: Yes

Packaging data
Package width: 102 mm
Package height: 84 mm
Package depth: 81 mm

Packaging content
Manual: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Packet forwarding rate (100 Mbps): 148810 pps
MAC address table: 2000 entries
Packet forwarding rate (10 Mbps): 14881 pps
Jumbo frames support: Yes
Jumbo frames: 15000
Switching capacity: 10 Gbit/s
Packet forwarding rate (1 Gbps): 1488100 pps

Power over Ethernet (PoE)
Power over Ethernet (PoE): No


Warranty: warranty 36 months
