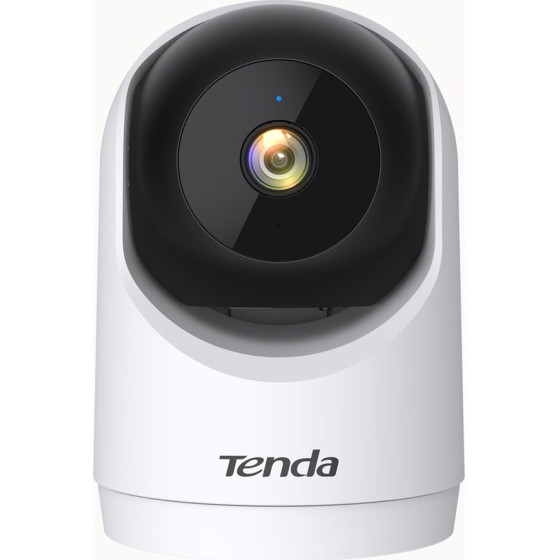

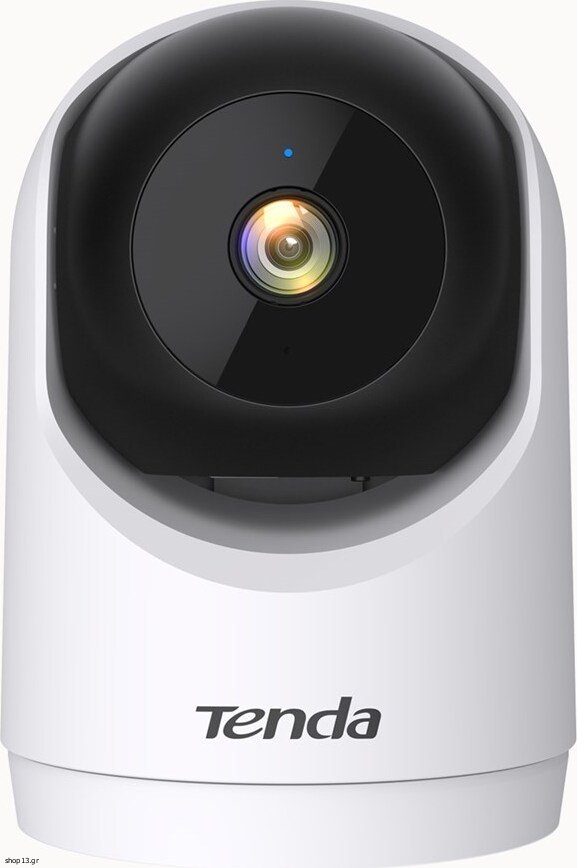

Tenda Camera - (RP3 V3.0)

Design
Product colour: White
Form factor: Turret
Mounting type: Desk/Ceiling
Housing material: Plastic

Power
Power source type: DC
DC output voltage: 12

Security
Security algorithms: WPA, WPA3-SAE, 64-bit WEP, WPA2, 128-bit WEP, WPA2-PSK, WPA-PSK

Operational conditions
Storage relative humidity (H-H): 3 - 95%
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): -30 - 60 °C

Management features
Reset button: Yes
Web browser: Yes

Weight & dimensions
Weight: 367 g
Depth: 120 mm
Width: 120 mm
Height: 146 mm

Network
Bluetooth: No
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 6 (802.11ax)
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
Wi-Fi: Yes
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes

Performance
Antenna type: Internal
Connectivity technology: Wireless
Type: IP security camera
Placement supported: Indoor

Packaging data
Package width: 167 mm
Package height: 251 mm
Package weight: 860 g
Package depth: 131 mm

Packaging content
Mounting kit: Yes
Mounting brackets included: Yes
Number of cameras: 1

Audio
Built-in microphone: Yes
Voice codecs: G.711a, AAC, G.711u
Built-in speaker(s): Yes

Storage
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
Maximum memory card size: 512 GB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Viewing angle, vertical (4mm lens): 53,1°
Viewing angle, horizontal (4mm lens): 82.3°
Tilt angle range: 0 - 90°
Viewing angle, diagonal (4mm lens): 91°
Pan range: -360 - 360°
Camera tilt control: Yes
Camera pan control: Yes

Image sensor
Sensor type: CMOS

Video
Supported graphics resolutions: 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 2304 x 1296
Maximum resolution: 2304 x 1296 pixels
Total megapixels: 6 MP
Video streaming: Yes
Noise reduction: Yes

Night vision
Infra-red wavelength: 850 nm
Night vision: Yes
Night vision distance: 30 m
LED type: IR

Lens system
Maximum aperture number: 1.6
Fixed focal length: 4 mm
Number of lenses: 1

Sustainability
Compliance certificates: RCM, Federal Communications Commission (FCC), UKCA, RoHS, CE

Panoramic camera
Fixed focal length (panoramic camera): 4mm


Warranty: warranty 36 months
