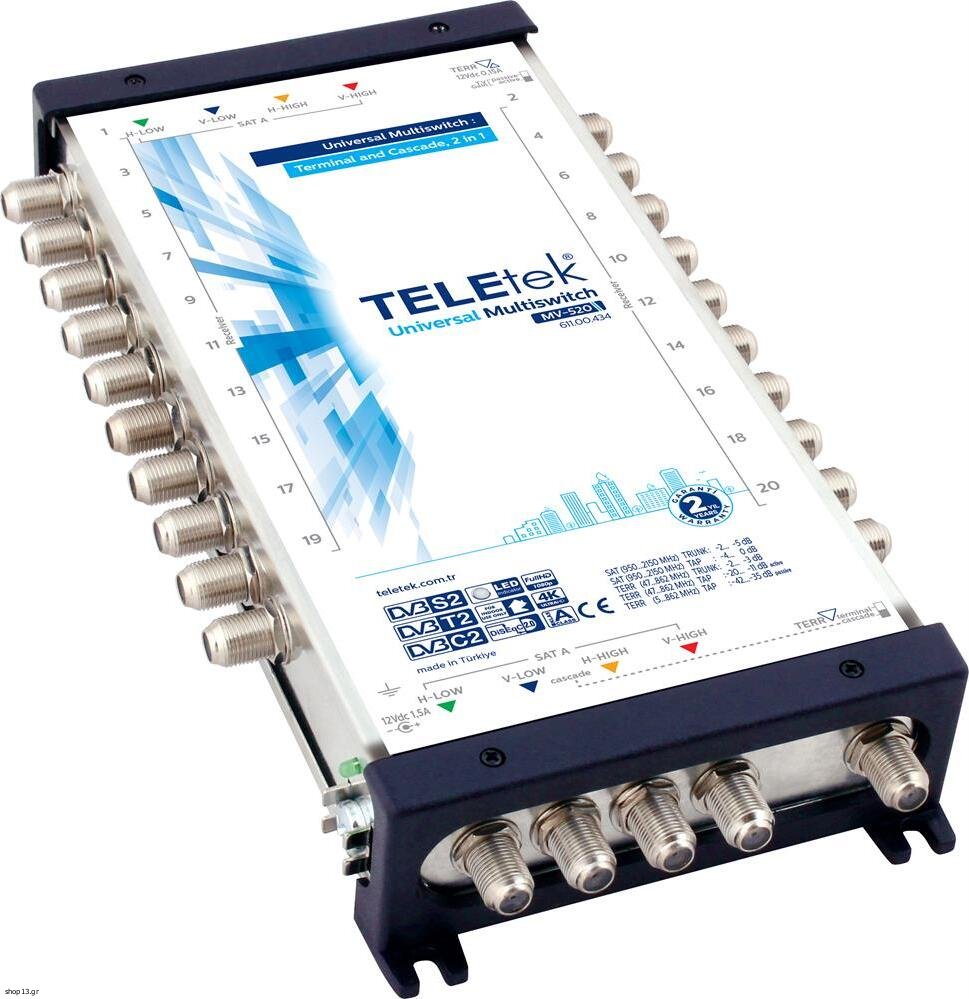

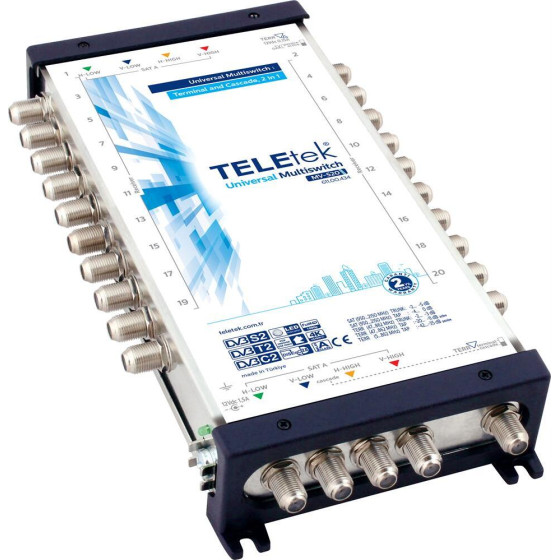

Teletek Multiswitch 5X20 MV-520 Cascade - (MUL.TLTK.5X20)

Τεχνικά χαρακτηριστικά:
Inputs
SAT polarities + Terr: 4+1
Taps: 20
Tap loss
SAT 950...2150 MHz (dB): -3...+1
Active Terr 47...862 MHz (dB): -5...-1
Passive Terr 5...862 MHz (dB): -25...-21
Return loss
SAT 950...2150 MHz (dB): >10
Terr 5...862 MHz (dB): >10
Isolation
SAT to Terr (dB): >60
Terr to SAT (dB): >24
Cross polar. H/V (dB): >30
Output level
SAT (IMD3, EN50083-5) (dBμV): 100
Terr (IMD3, EN50083-5) (dBμV): 92
LNB power supply: 13 VDC/1500 mA
Consumption from the receiver (mA): 40
Switching commands: DisEqC2.0 - 13V/18V, 0/22 KHz, Tone
Dimensions (LxWxH) (mm): 230x130x40
universal, standalone/cascadable
