TACENS Mars Gaming MPB750SI power supply unit 750 W 24-pin ATX ATX Black - (TACMARS-MPB750SI)

Design
Cooling type: Active

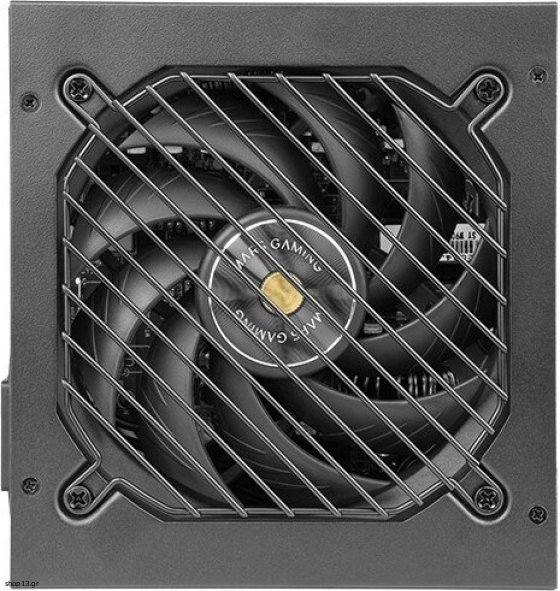

Fan location: Top
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Power
Total power: 750 W
AC input voltage: 220 - 240 V
Power protection features: Under voltage, Over current, Over power, Short circuit, Over voltage
Combined power (+12V): 744 W
Max output current (+5Vsb): 3 A
AC input frequency: 47 - 63 Hz
Efficiency: 90%
Max output current (+5V): 62 A
Combined power (+5Vsb): 15 W
Input current: 5 A
Max output current (+12V): 45.5 A
Combined power (+5V): 130 W
Max output current (-12V): 0.5 A
Combined power (+3.3V): 130 W
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 25 A
Combined power (-12V): 6 W

Weight & dimensions
Height: 85 mm
Depth: 145 mm
Weight: 1.5 kg
Width: 150 mm

Performance
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Power supply unit (PSU) form factor: ATX
Noise level: 12 dB

Packaging data
Package width: 205 mm
Package depth: 235 mm
Package height: 125 mm
Package weight: 1.69 kg

Ports & interfaces
Motherboard power connector: 24-pin ATX
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
Cabling type: Non-Modular
Number of SATA power connectors: 5
CPU power connector (4+4 pin): Yes


Warranty: warranty 24 months
