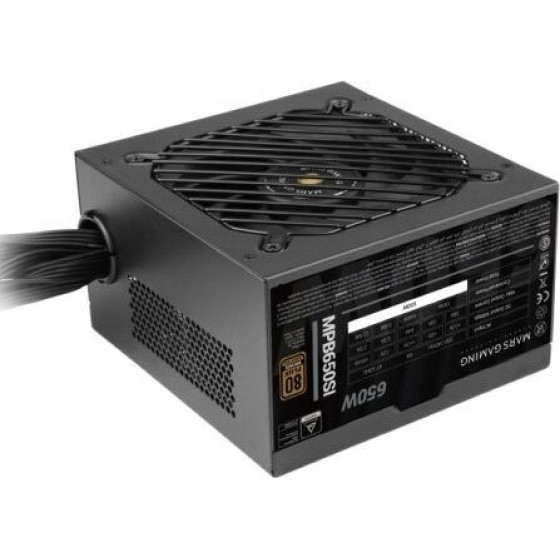

TACENS Mars Gaming MPB650SI power supply unit 650 W 24-pin ATX ATX Black - (TACMARS-MPB650SI)

Design
Fan location: Top
Cooling type: Active
Product colour: Black
Number of fans: 1 fan(s)
Fan diameter: 12 cm

Power
Power protection features: Short circuit, Over voltage, Under voltage, Over current, Over power
Total power: 650 W
Input current: 5 A
Max output current (+5Vsb): 2.5 A
Max output current (+12V): 54 A
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 18 A
Combined power (+5V): 100 W
Combined power (+12V): 648 W
AC input voltage: 220 - 240 V
Combined power (+5Vsb): 12.5 W
Combined power (+3.3V): 100 W
AC input frequency: 47 - 63 Hz
Combined power (-12V): 3.6 W
Max output current (+5V): 18 A
Efficiency: 90%
Max output current (-12V): 0.3 A

Weight & dimensions
Width: 150 mm
Depth: 145 mm
Weight: 1.5 kg
Height: 85 mm

Performance
Noise level: 12 dB
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Power supply unit (PSU) form factor: ATX

Packaging data
Package weight: 1.66 kg
Package depth: 240 mm
Package height: 125 mm
Package width: 205 mm

Ports & interfaces
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
Motherboard power connector: 24-pin ATX
CPU power connector (4+4 pin): Yes
Cabling type: Non-Modular
Number of SATA power connectors: 5


Warranty: warranty 24 months
