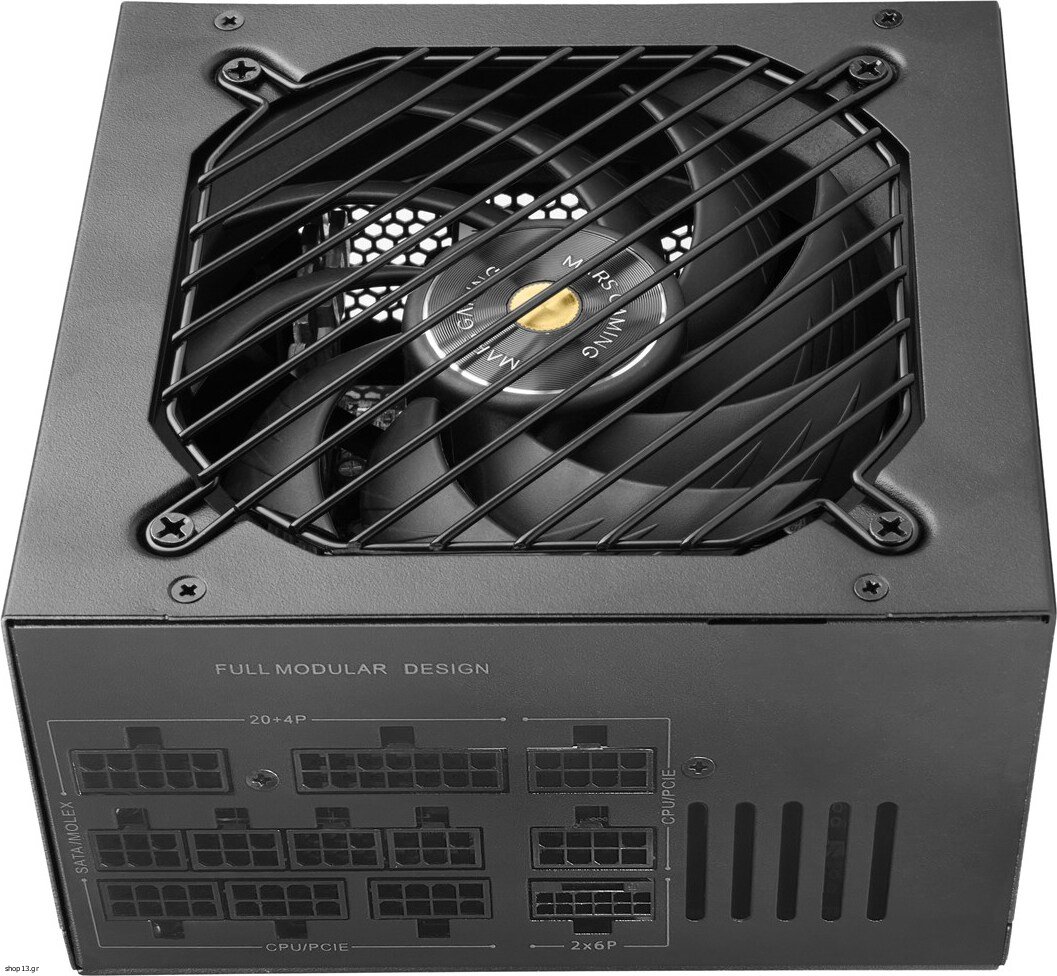

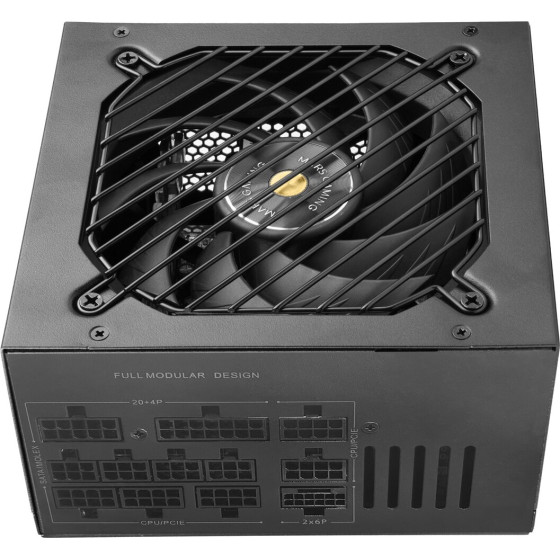

TACENS Mars Gaming MPB1000PSI power supply unit 1000 W 24-pin ATX ATX Black - (TACMARS-MPB1000PSI)

Design
Product colour: Black
Cooling type: Active
Fan location: Top
Fan diameter: 14 cm
On/off switch: Yes
Number of fans: 1 fan(s)

Power
Number of +12V rail(s): 1
Max output current (+12V): 83.3 A
Total power: 1000 W
Max output current (+3.3V): 20 A
Input current: 15 A
Power protection features: Under voltage, Over current, Over power, Overload, Short circuit, Over voltage, Over total voltage, No load operation
Efficiency: 90%
Combined power (+5V): 150 W
Power factor: 0.9
AC input frequency: 47 - 63 Hz
Power Factor Correction (PFC) type: Active
Combined power (+12V): 1000 W
Combined power (-12V): 3.6 W
AC input voltage: 220 - 240 V
Combined power (+5Vsb): 12.5 W
Max output current (+5Vsb): 2.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Combined power (+3.3V): 150 W

Weight & dimensions
Height: 85 mm
Depth: 160 mm
Width: 150 mm
Weight: 1.75 kg

Performance
Purpose: PC
Bearing technology: FDB
80 PLUS certification: 80 PLUS Gold
Noise level: 14 dB
Power supply unit (PSU) form factor: ATX

Packaging data
Package height: 206 mm
Package depth: 136 mm
Package type: Box
Package width: 258 mm

Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA

Certificates
Compliance certificates: RoHS, CE, TUV mark

Ports & interfaces
Number of EPS connectors: 2
CPU power connector (4+4 pin): Yes
Number of SATA power connectors: 6
EPS power connector (4+4 pin): Yes
Cabling type: Fully-Modular
Motherboard power connector: 24-pin ATX
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
ATX Power connector (24-pin): Yes


Warranty: warranty 24 months
