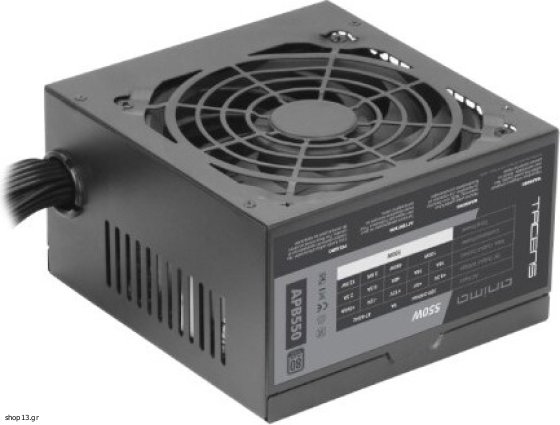

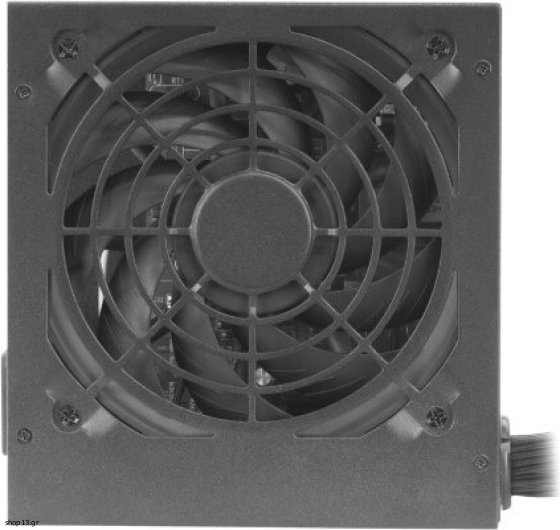

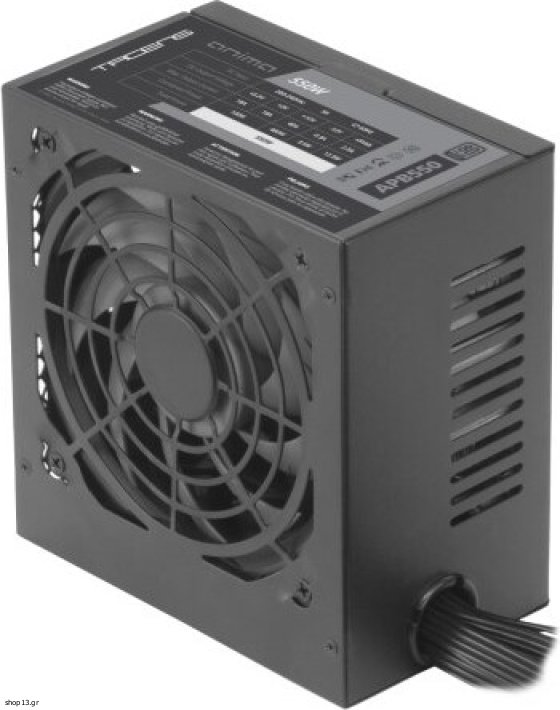

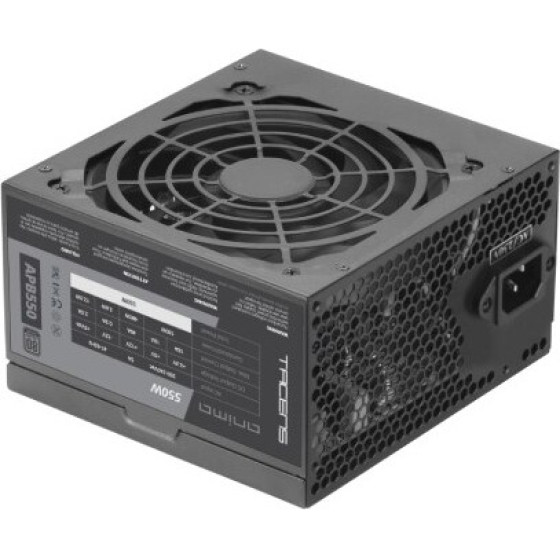

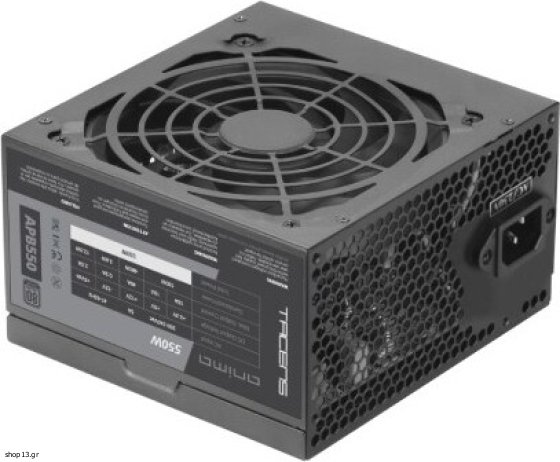

TACENS APB550B power supply unit 550 W 20+4 pin ATX ATX Black - (TACANIMA-APB550)

Design
Fan diameter: 12 cm
Product colour: Black
Number of fans: 1 fan(s)

Power
Combined power (+3.3V): 100 W
AC input voltage: 220 - 240 V
Efficiency: 85%
Max output current (+5Vsb): 2.5 A
Input current: 5 A
Power protection features: Over power, Short circuit, Over voltage, Under voltage
Max output current (+5V): 18 A
Combined power (+5V): 100 W
Combined power (+5Vsb): 12.5 W
Combined power (-12V): 3.6 W
Max output current (+12V): 40 A
AC input frequency: 47 - 63 Hz
Max output current (+3.3V): 18 A
Max output current (-12V): 0.3 A
Combined power (+12V): 480 W
Total power: 550 W

Weight & dimensions
Width: 150 mm
Weight: 1.35 kg
Height: 85 mm
Depth: 140 mm

Performance
Power supply unit (PSU) form factor: ATX
Noise level: 14 dB
80 PLUS certification: 80 PLUS Bronze
Purpose: PC

Packaging data
Package weight: 1.5 kg
Package height: 165 mm
Package width: 100 mm
Package depth: 218 mm

Ports & interfaces
PCI Express power connectors (6+2 pin): 1
Number of PATA power connectors: 2
EPS power connector (4+4 pin): Yes
Number of SATA power connectors: 3
Motherboard power connector: 20+4 pin ATX
Cabling type: Non-Modular


Warranty: warranty 24 months
