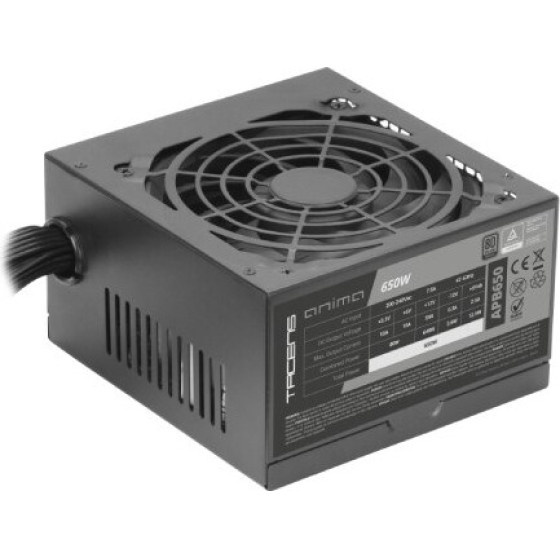

TACENS Anima APB650 Power Supply Unit 650 W 24-Pin Atx Atx Black - (TACANIMA-APB650)

Design
Illumination: No
On/off switch: Yes
Product colour: Black
Fan diameter: 12 cm
Cooling type: Active
Fan location: Top
Number of fans: 1 fan(s)

Power
Power protection features: Under voltage, Over current, Over power, Short circuit, Over voltage
Combined power (-12V): 3.6 W
Max output current (+5Vsb): 2.5 A
Max output current (+5V): 10 A
Combined power (+3.3V): 80 W
Max output current (+12V): 54 A
Total power: 650 W
Combined power (+12V): 648 W
AC input voltage: 200 - 240 V
Efficiency: 85%
Input current: 7.5 A
Combined power (+5Vsb): 12.5 W
AC input frequency: 47 - 63 Hz
Power Factor Correction (PFC) type: Active
Combined power (+5V): 80 W
Max output current (-12V): 0.3 A
Max output current (+3.3V): 10 A

Weight & dimensions
Depth: 145 mm
Weight: 1.36 kg
Height: 85 mm
Width: 150 mm

Performance
Noise level: 14 dB
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Power supply unit (PSU) form factor: ATX

Packaging data
Package weight: 1.51 kg
Package height: 203 mm
Package depth: 237 mm
Package type: Box
Package width: 126 mm

Ports & interfaces
Peripheral (Molex) power connectors (4-pin): 2
ATX Power connector (24-pin): Yes
Number of SATA power connectors: 4
PCI Express power connectors (6+2 pin): 2
Motherboard power connector: 24-pin ATX
Cabling type: Non-Modular
CPU power connector (4+4 pin): Yes


Warranty: warranty 24 months
